SAPAA

Protected Areas Inspection App

UI / UX Design Documentation - v3.0

Design System Reference for Development Teams

Next.js · Tailwind CSS · Supabase · AWS

1. Introduction

1.1 Purpose

This document defines the complete UI/UX design system for the SAPAA (Stewards of Alberta's Protected Areas Association) web application. It covers design principles, usability heuristics, accessibility considerations, responsive design patterns, and component-level implementation guidance for the web (Next.js) platform.

Consistency is critical. Every page must follow the patterns described here so that users experience a coherent interface across all screens and workflows.

1.2 Technology Stack

Area	Technology
Framework	Next.js (App Router, TypeScript)
Styling	Tailwind CSS - utility-first, inline class names only
Database	Supabase (PostgreSQL) - tables prefixed `W26_`
Auth	Supabase Auth with `ProtectedRoute` wrapper
Drag and Drop	`@dnd-kit/core` + `@dnd-kit/sortable`
Maps	Leaflet (SSR-guarded with mounted state)
Charts	Chart.js via `react-chartjs-2`
Icons	`lucide-react` (primary), `@mui/icons-material`, `react-icons`
UI Components	`@mui/material` v7 (selective use alongside Tailwind)
Guided Tours	`react-joyride` (in-app tutorials)

1.3 Application Pages

Route	Component	Purpose
`/sites`	HomeClient	Public site listing
`/detail/[namesite]`	SiteDetailScreen	Single site view
`/detail/[namesite]/new-report`	NewReportPage	New inspection report form
`/detail/[namesite]/edit-report/[responseId]`	EditReportPage	Edit existing report
`/gallery`	GalleryPage	User image gallery with search and filtering
`/login`	LoginPage	User login page
`/signup`	SignupPage	User sign up page
`/terms`	TermsContent	Terms of service page
`/admin/dashboard`	Dashboard	Admin analytics and stats
`/admin/account-management`	AccountManagementPage	User account administration
`/admin/sites`	AdminSitesPage	All sites management
`/admin/sites/[id]`	AdminSiteDetails	Site management
`/admin/gallery`	GalleryPage	Admin image gallery with search and filtering
`/admin/form-editor`	FormEditorPage	Form section and question editor

2. Design Principles

2.1 Visual Consistency

Maintain a consistent visual language to reduce cognitive load and build user confidence.

Unified navigation shell: Consistent header with SAPAA logo, gradient green background, and navigation elements. Both User and Admin pages use a hamburger menu for navigation.

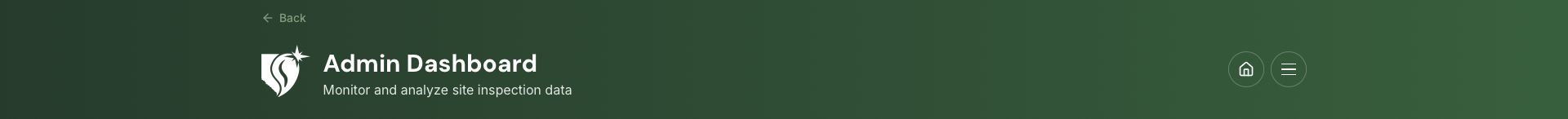

UI Header User UI Header Admin

Standardised colour palette: Primary green (#254431, #356B43) for headers and primary actions. White (#FFFFFF) for content cards. Light grey (#F7F2EA, #E4EBE4) for dividers and secondary surfaces. Red (#B91C1C) for destructive actions.

Typography hierarchy: Page titles at large and bold (24–32px). Section headers at medium and semi-bold (18–20px). Body text at regular weight (14–16px). Supporting text at smaller regular (12–14px).

2.2 Clear Visual Hierarchy

Guide attention using size, weight, colour, and spacing.

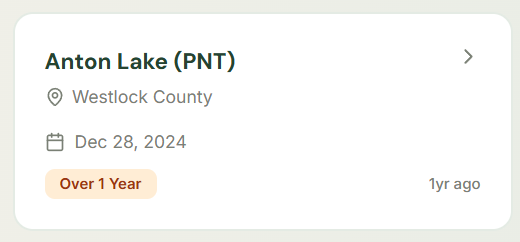

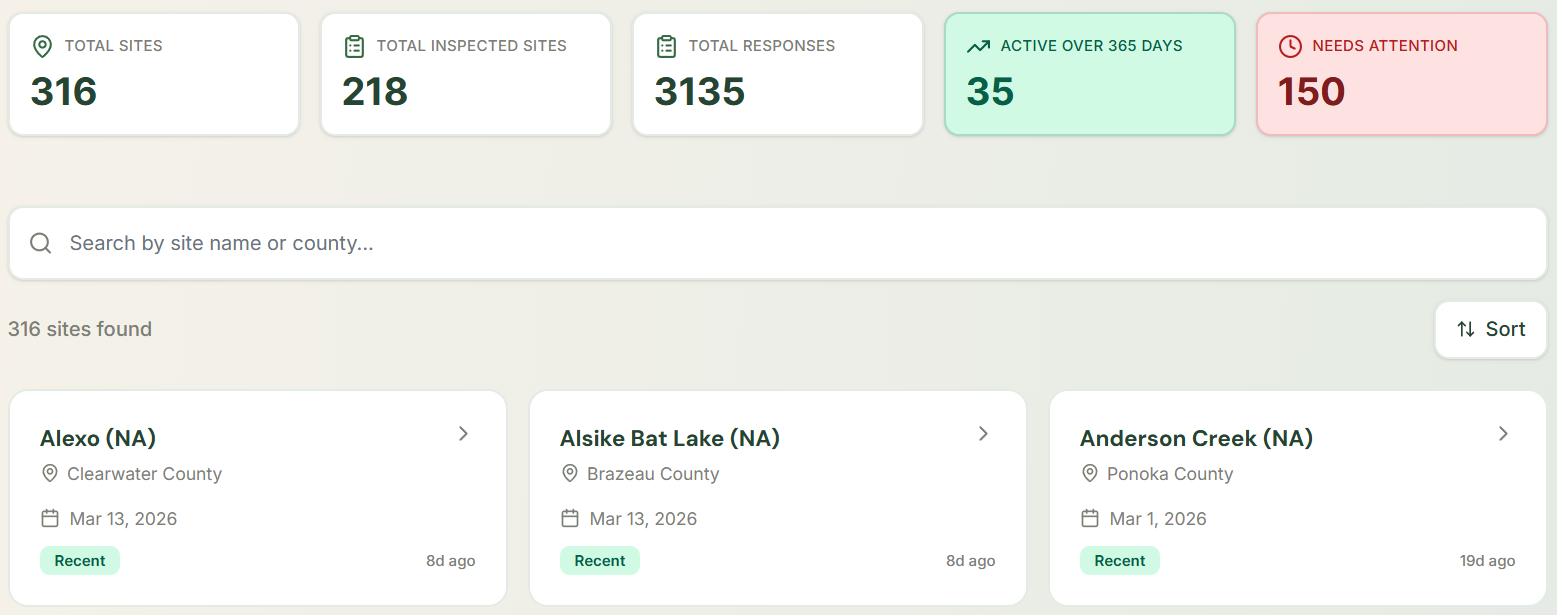

Card-based layout: Major information chunks are grouped into cards (e.g., Site Details, Naturalness Details, Analytics charts, Account tiles). Cards use consistent padding, rounded corners, and subtle shadows.

UI Card Based Layout

Strategic emphasis: Primary actions use filled green buttons with high visual weight (e.g., Preview PDF, Sync Now, Login). Secondary actions use outlined buttons or lower-contrast styling.

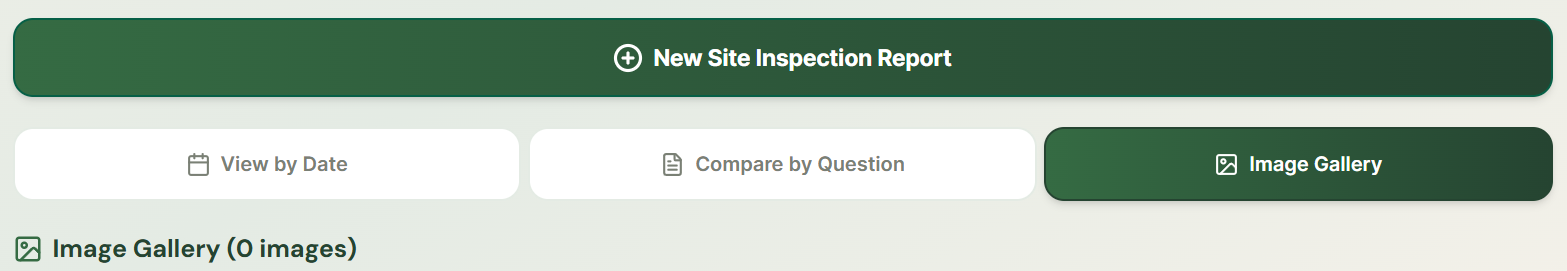

UI Strategic Emphasis

Consistent spacing: Padding inside cards (16–24px) and consistent vertical spacing between sections (16–32px) creates rhythm and improves readability.

2.3 Progressive Disclosure

Show only what users need at each step, and reveal more detail on demand.

Inspection Reports: Tabs for By Date and By Question instead of one long view. Expandable sections for detailed observations.

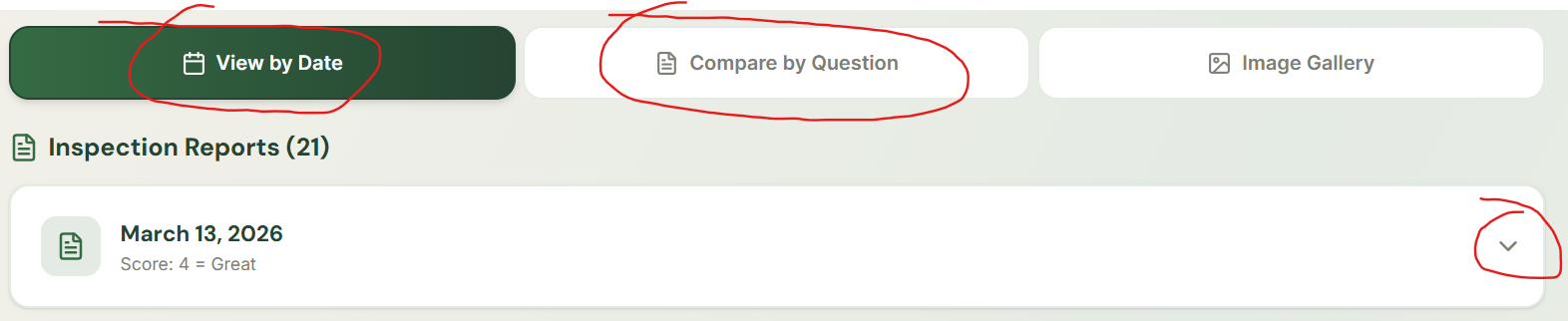

UI Tabs

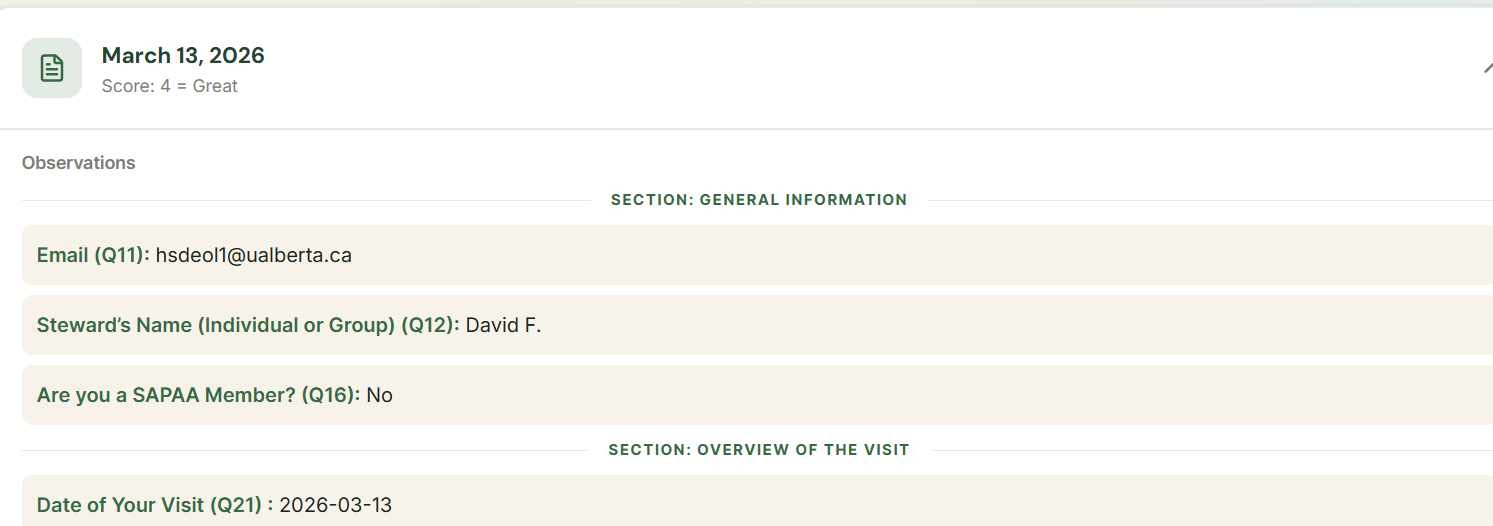

Site Details: High-level information at the top (name, location, key metrics). Detailed observations and naturalness details appear further down in separate cards.

UI Site Details

Admin Features: Admin-specific features are not visible to regular users. Admin navigation is accessible via menu or dedicated button.

2.4 Action-Oriented Design

Make key tasks obvious and easy to complete.

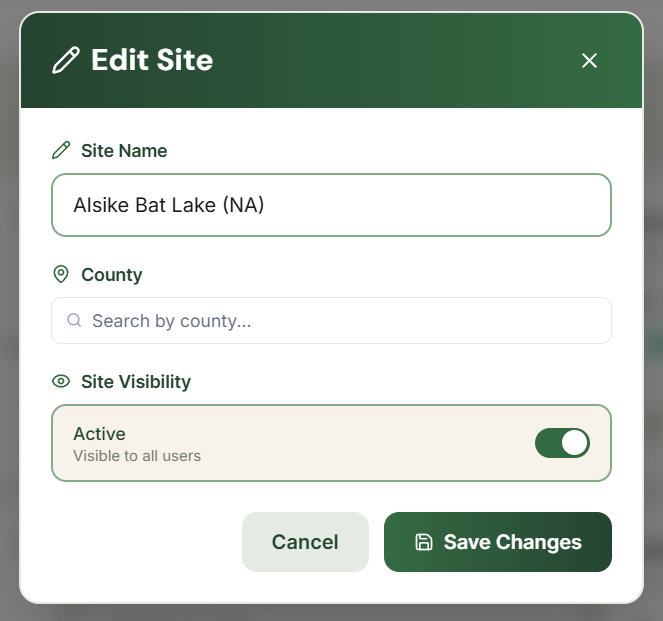

Button hierarchy: Primary uses solid green, often full width. Secondary uses outlined or low-emphasis styling. Destructive uses red with a clear label.

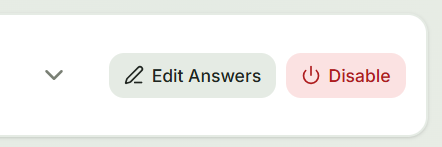

UI Button Hierarchy

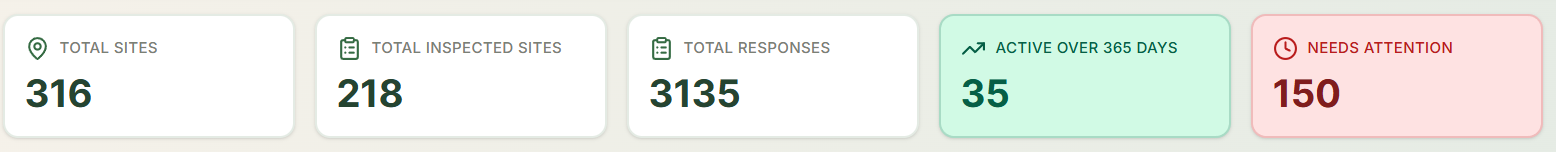

Immediate feedback: Counters and indicators update live as users interact. Loading states show progress indicators. Lists and cards visually respond to user interaction.

UI Counters Feedback

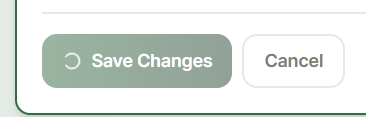

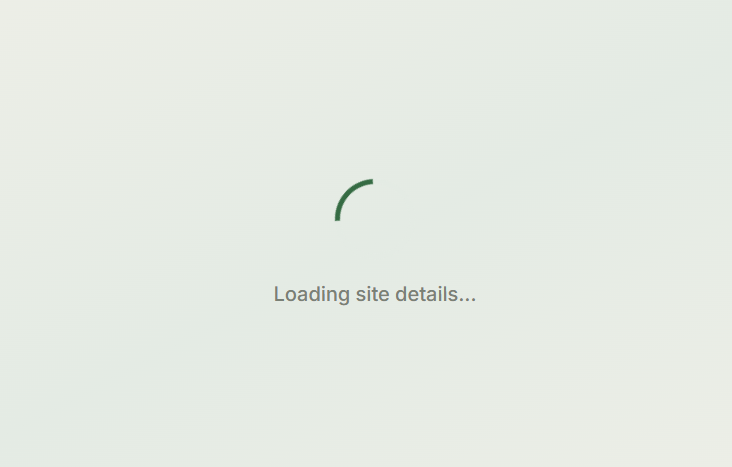

UI Loading Feedback

3. Usability Heuristics (Nielsen's 10)

3.1 Visibility of System Status

The system always keeps users informed about what is going on.

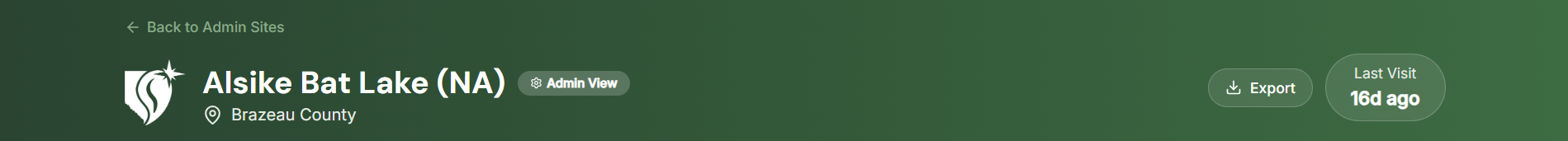

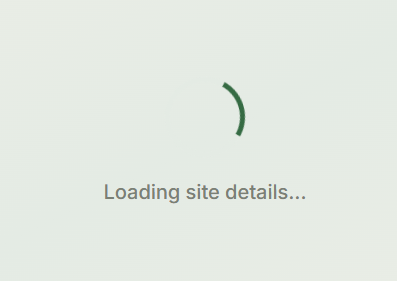

Web: Loading spinners appear during data fetches. Page titles reflect the current location. Active navigation items are highlighted. Search results show a count of sites found.

UI Site Title

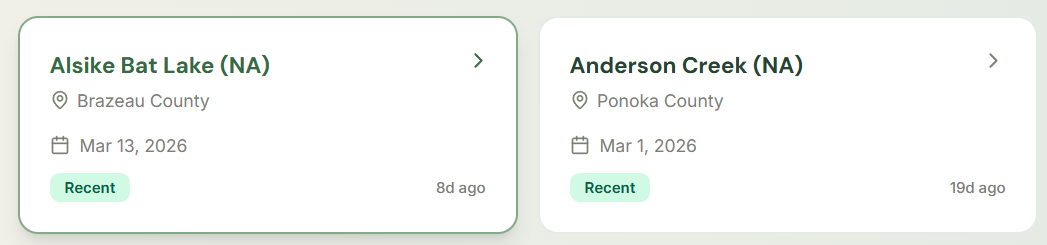

UI Highlighted Item

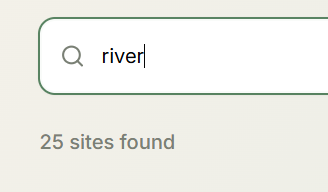

UI Search Result Count

Why this matters: Users can see that their actions are working and understand where they are in the app, reducing confusion and frustration.

3.2 Match Between System and the Real World

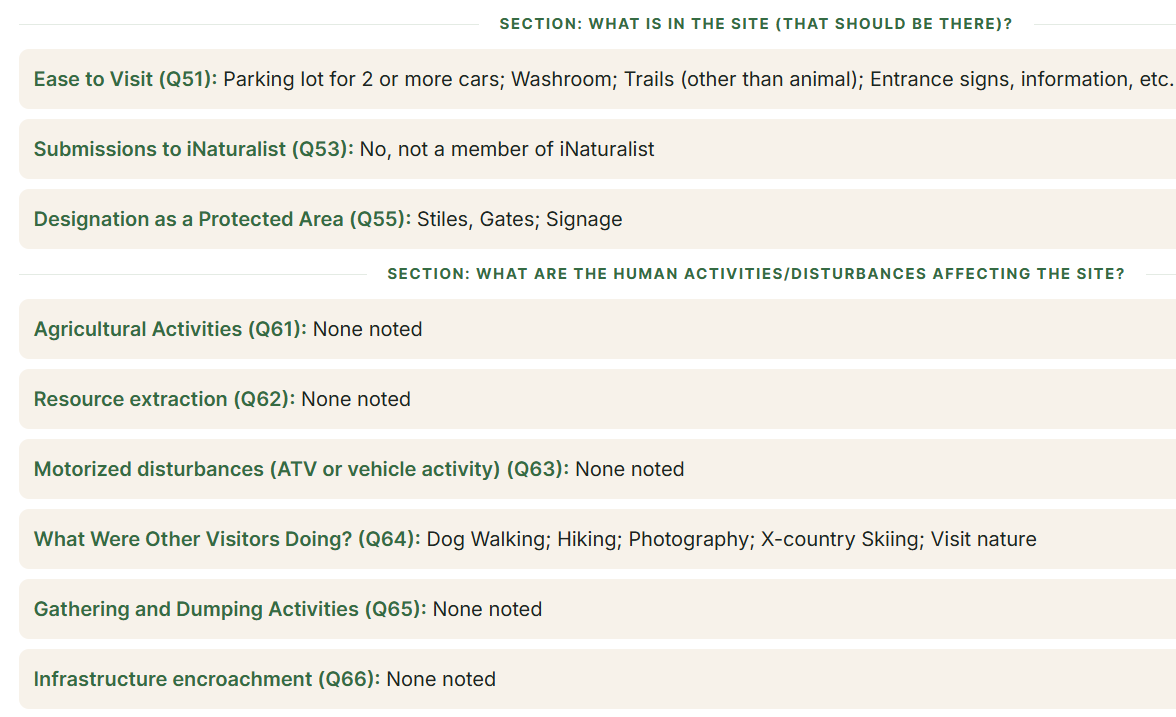

The application uses terminology that stewards already know: Naturalness Score, Recreational Activities, Observations. The SAPAA Map uses Google Maps (mobile) and Leaflet (web) with familiar map interactions. Inspection questions are labelled with codes (Q52, Q62, etc.) that match existing steward workflows.

UI Steward Terminology

Why this matters: Familiar language and visuals reduce training time and make the app feel like a natural extension of existing workflows.

3.3 User Control and Freedom

Provide clearly marked exits and ways to undo actions.

Web: Back buttons appear on all detail pages. Modal dialogs can be closed with the X button or by clicking outside. Cancel buttons appear on forms. Breadcrumb navigation is used where applicable.

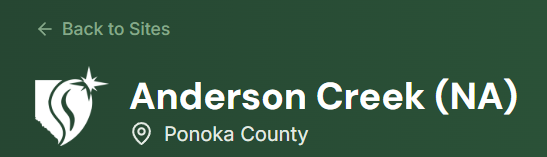

UI Back Button

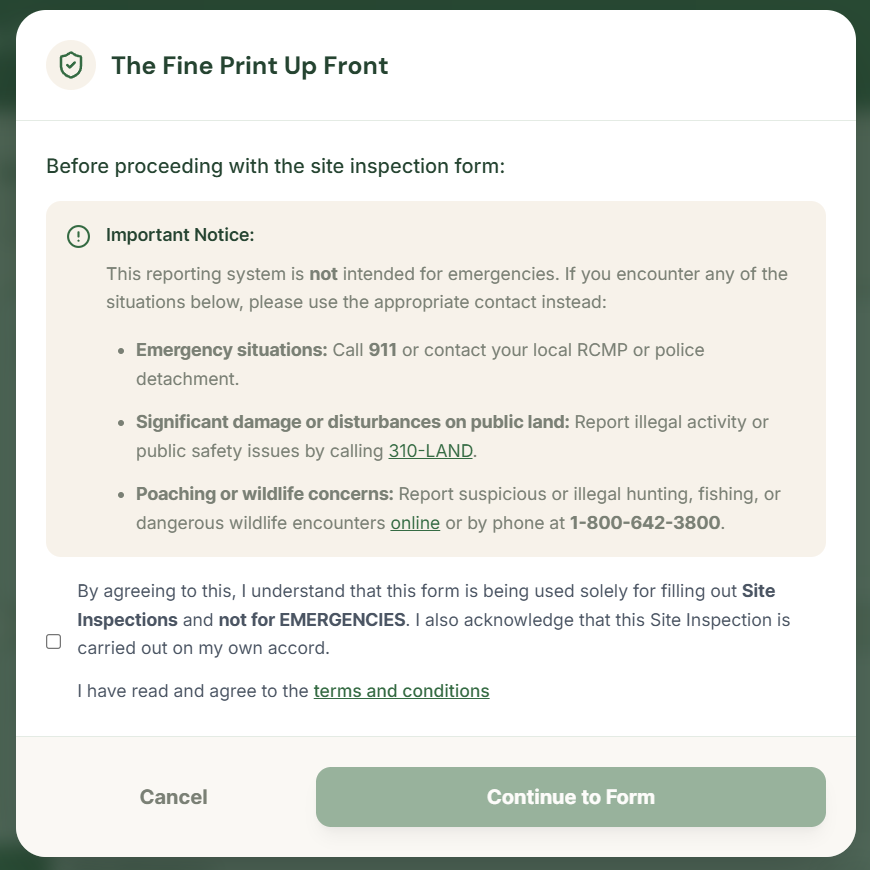

UI Cancel Button

Why this matters: Users feel safe exploring features because they know they can easily back out or adjust their choices.

3.4 Consistency and Standards

Follow platform conventions and maintain internal consistency.

Web: Consistent header design across all pages. Button styles are standardized (primary, secondary, destructive). Form inputs follow the same styling. Card components are reused throughout.

Why this matters: Once users learn basic patterns, they can apply them everywhere in the app.

3.5 Error Prevention

Design to prevent errors before they happen.

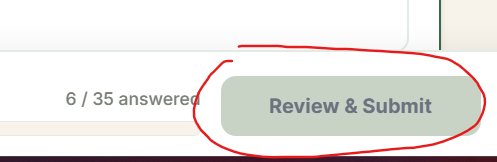

Web: Form validation prevents invalid submissions. Confirmation dialogues guard against destructive actions. Disabled states prevent invalid interactions. Clear error messages guide users to a resolution.

UI Form Validation

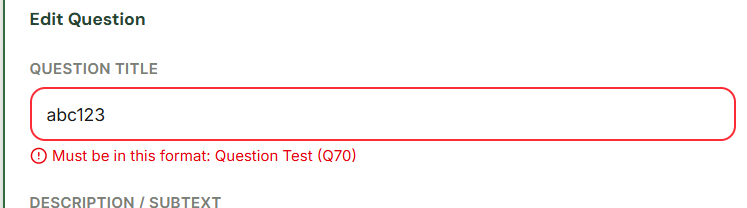

UI Error Message

Why this matters: Preventing mistakes saves time and protects data integrity.

3.6 Recognition Rather Than Recall

All fields are clearly labelled: Region, Area (HA/AC), Naturalness Details, and so on. Status badges show inspection recency with colour coding, so users do not need to calculate dates themselves.

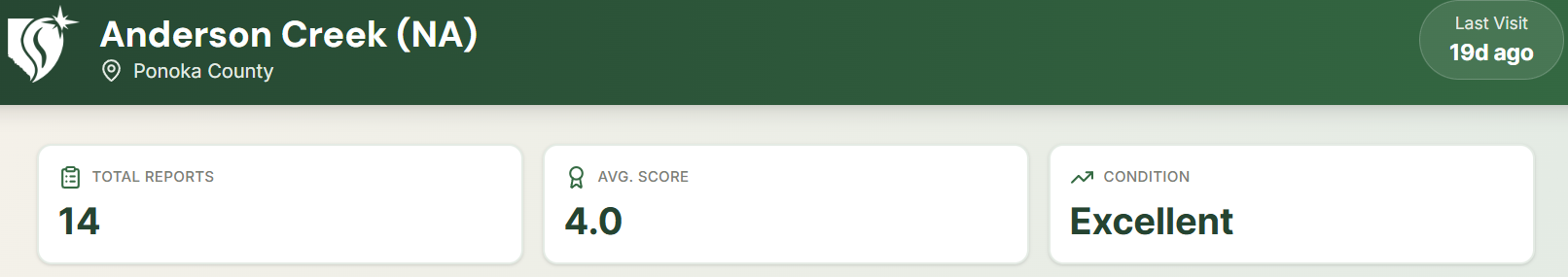

UI Field Labels

Why this matters: Users do not have to remember information across screens; they can recognise it instead.

3.7 Flexibility and Efficiency of Use

Provide accelerators for expert users while keeping the interface simple for novices.

Multiple access paths: Inspection reports can be viewed By Date (chronological workflow) or By Question (comparison/analysis workflow).

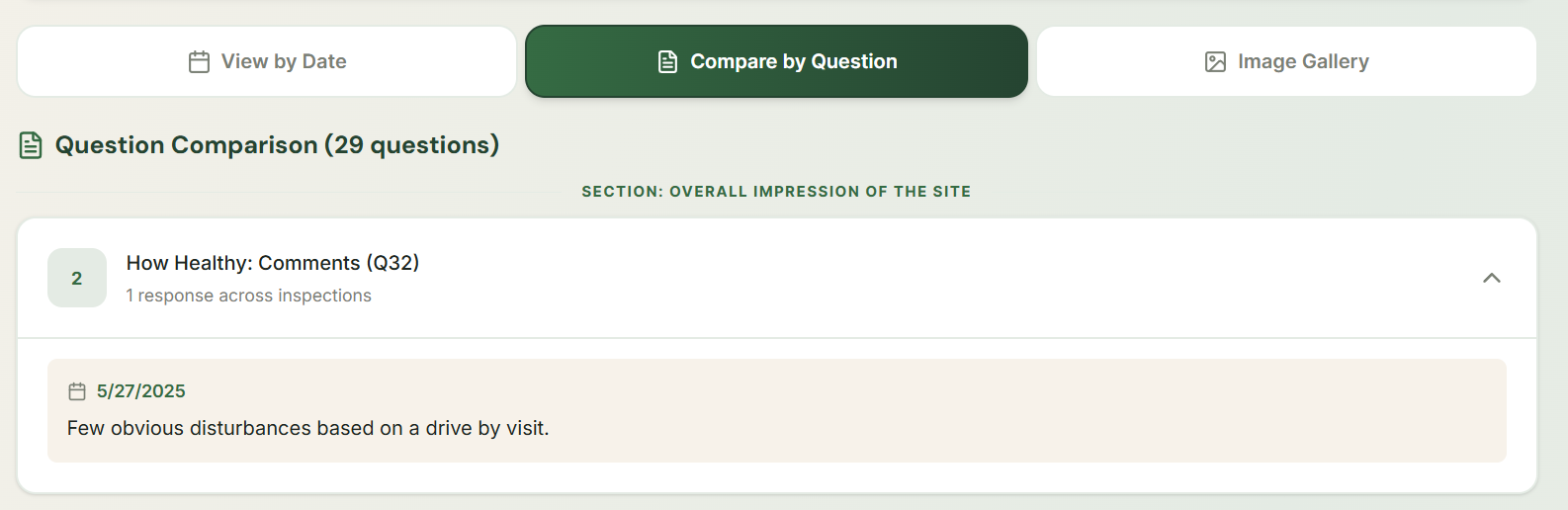

UI Efficient Workflow

Smart defaults: PDF generation starts with all fields selected, so users typically only need to deselect a few. Search is always available. Sort options are remembered.

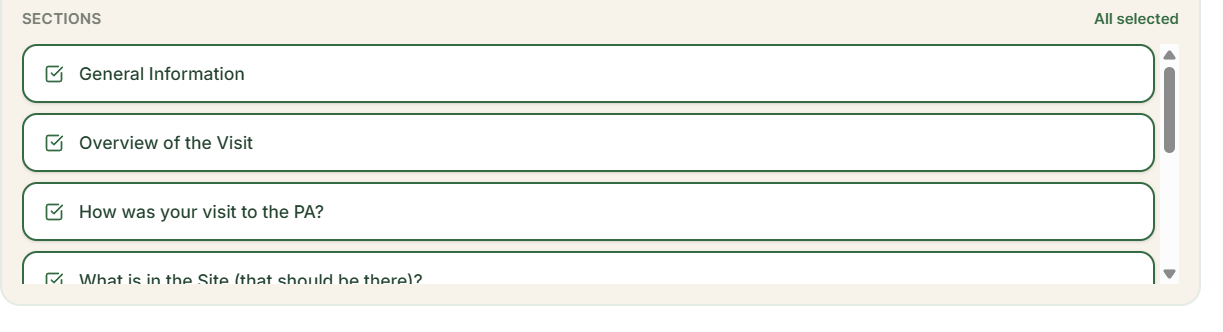

UI Smart Defaults

Why this matters: New users can follow straightforward flows, while experienced users can speed up their work with bulk actions and shortcuts.

3.8 Aesthetic and Minimalist Design

Interfaces should not contain irrelevant or rarely needed information.

Each screen is focused on one main task: view analytics, inspect a site, manage accounts, or generate a PDF. A limited colour palette (green, white, grey, and red for warnings) keeps the interface clean. Cards group only related information with enough white space for breathing room.

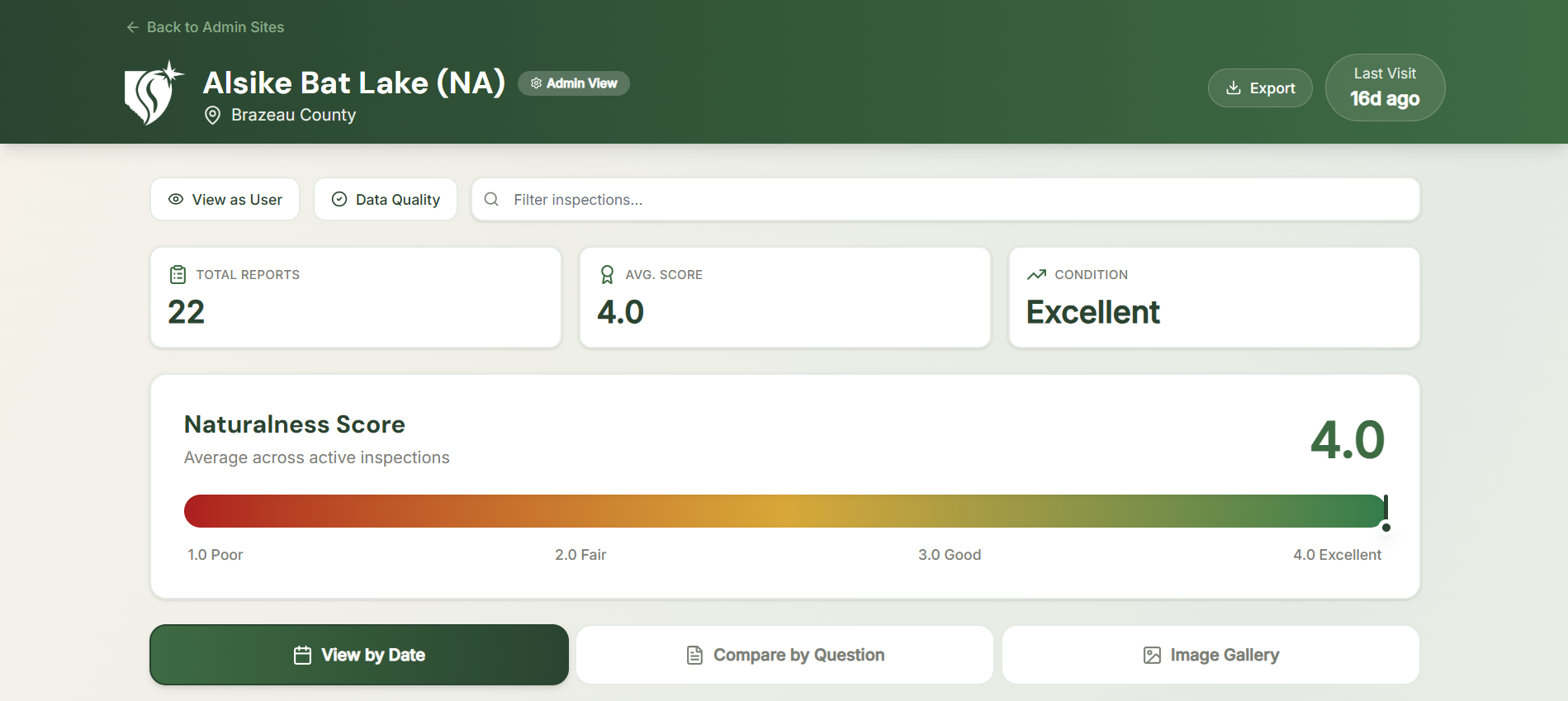

UI Aesthetics and Minimalist Design

Why this matters: A clean interface makes it easier to focus on what matters and reduces cognitive overload.

3.9 Help Users Recognise, Diagnose, and Recover from Errors

Error messages should be expressed in plain language, indicate the problem, and suggest a solution.

Web: Error messages are displayed in red with clear visibility. Form validation shows specific field errors. Network errors provide retry buttons. 404 pages guide users back to main content.

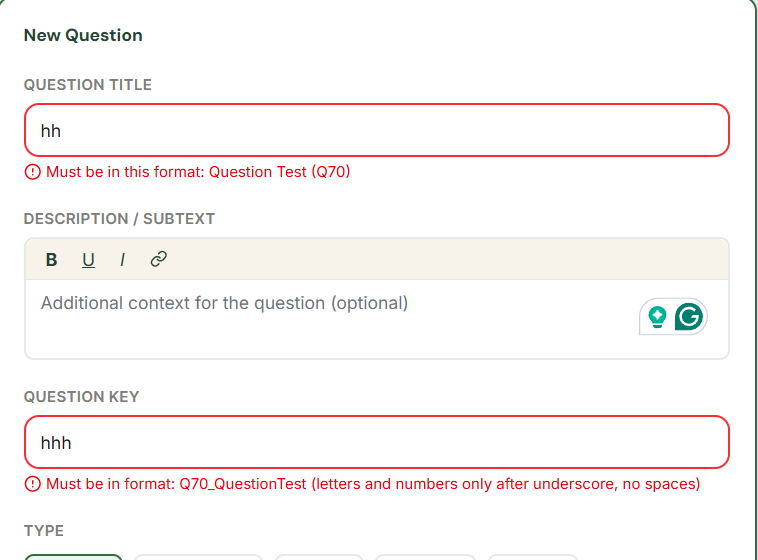

UI Visible Errors

Why this matters: Users can quickly understand what went wrong and how to fix it rather than feeling frustrated.

3.10 Help and Documentation

Help should be easy to find, focused on the user's task, and list concrete steps.

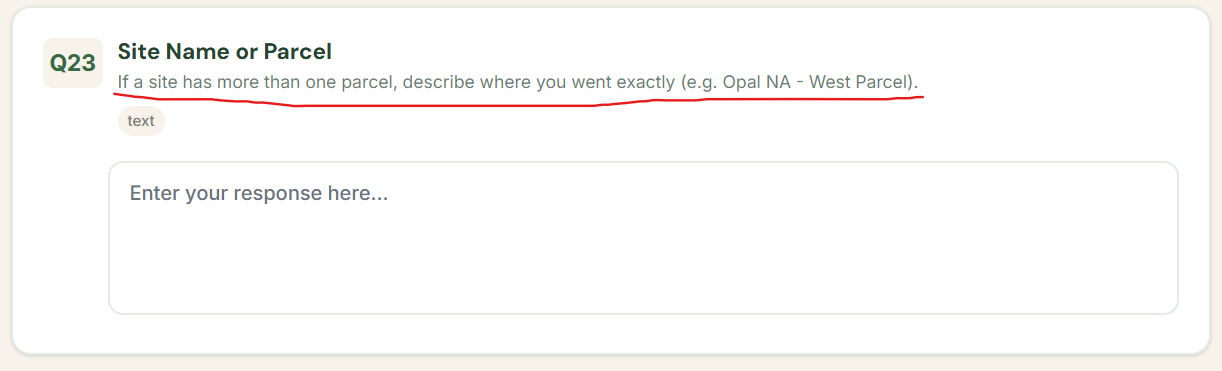

A user manual is available as an app tutorial. In-app tooltips and hints are provided where appropriate. Clear labels and placeholders guide users through forms. Status messages explain what actions do (e.g., "Syncing data..."). Page titles and descriptions provide contextual orientation throughout the web application.

UI In-app Tooltips

Why this matters: While the interface should be self-explanatory, having documentation available helps users learn advanced features.

4. Accessibility

4.1 Web Application

Keyboard navigation: All interactive elements are keyboard accessible.
Screen readers: Semantic HTML and ARIA labels are used where needed.
Colour contrast: All text meets WCAG AA standards.
Focus indicators: Clear focus states are provided for keyboard navigation.

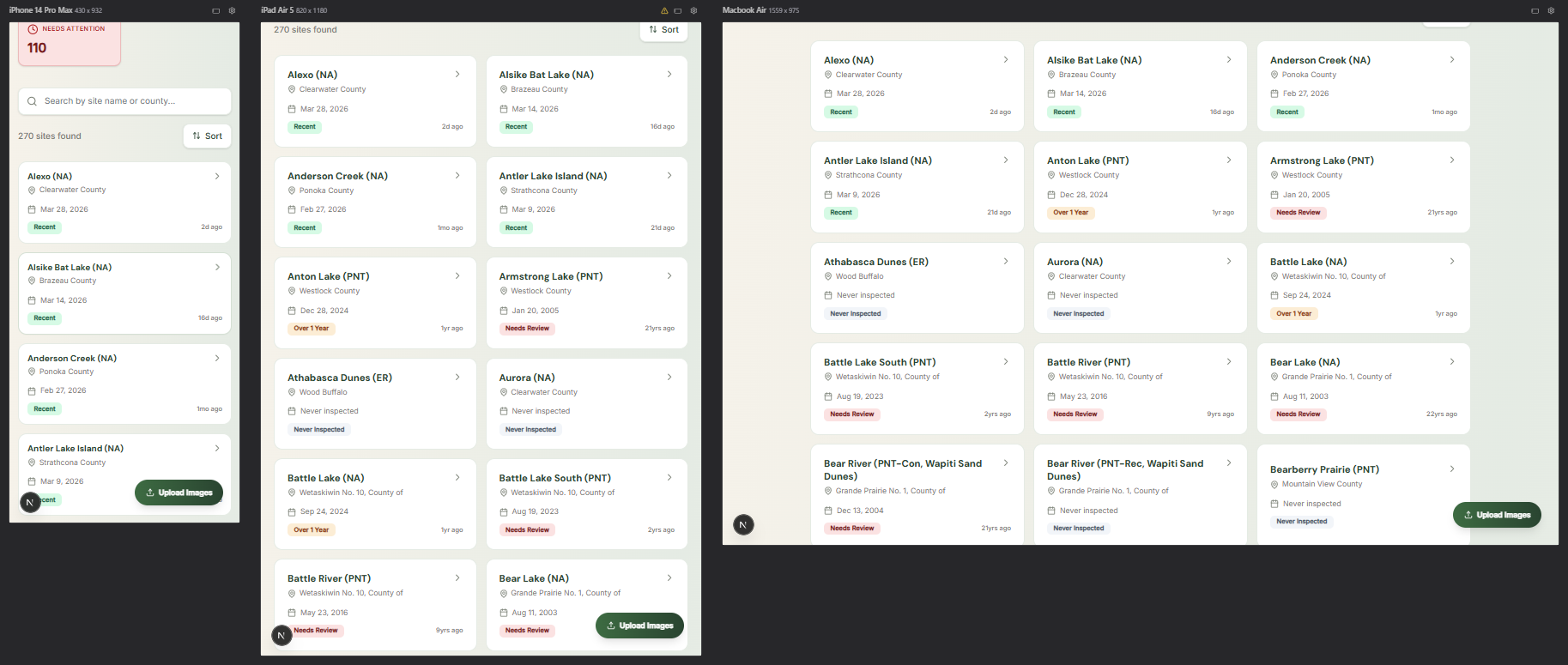

Responsive design: Mobile-first approach using Tailwind breakpoints. See Section 22 for full responsive design specification.
Alt text: All images include descriptive alt text.
Touch targets: Interactive elements meet minimum 44x44px touch target size for mobile accessibility.

5. Colour Palette

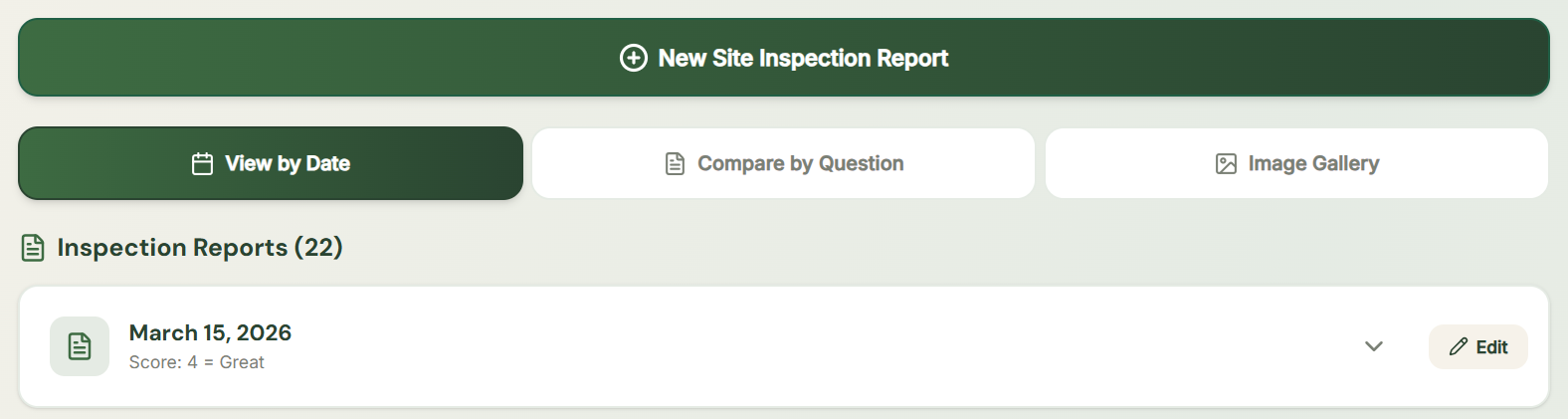

All colours in the application are drawn from a forest-green and warm-cream palette. Custom hex values are used throughout. No Tailwind named colour shades (e.g., green-700) appear in the codebase.

UI Colour Palette

5.1 Primary Brand Colours

Token	Hex	Usage
Forest Dark	`#254431`	Page titles, section headings, strong text, header gradient start
Forest Mid	`#356B43`	Buttons, active states, icons, header gradient end, links
Forest Light	`#86A98A`	Hover states, muted header text, secondary borders

5.2 Background Colours

Token	Hex	Usage
Warm Cream	`#F7F2EA`	Page background gradient from/to, preview panels, alternating rows
Cool Sage	`#E4EBE4`	Page background gradient via, borders, chips, hover fills

5.3 Text Colours

Token	Hex	Usage
Deep Charcoal	`#1E2520`	Primary body text, high-contrast content
Forest Dark	`#254431`	Heading text, stat numbers, labels
Muted Sage	`#7A8075`	Captions, metadata, labels, placeholder text

5.4 Status and Semantic Colours

Pair	Usage
`#B91C1C` / `#FEE2E2`	Error states, required badges, destructive actions
`#7F1D1D` / `#FEE2E2`	Needs Review status badge (more than 730 days)
`#065F46` / `#D1FAE5`	Success, Recent inspection badge (fewer than 180 days)
`#92400E` / `#FEF3C7`	Past Year badge (181–365 days)
`#9A3412` / `#FFEDD5`	Over 1 Year badge (366–730 days)
`#475569` / `#F1F5F9`	Never Inspected badge

5.5 Gradients

Header:     bg-gradient-to-r from-[#254431] to-[#356B43]
Background: bg-gradient-to-br from-[#F7F2EA] via-[#E4EBE4] to-[#F7F2EA]
Button:     bg-gradient-to-r from-[#356B43] to-[#254431]

6. Typography

Typography is primarily handled through Tailwind utility classes, with global font setup in app/globals.css. The current web implementation loads Google Fonts Inter (body/UI) and DM Sans (headings), then applies them globally.

6.1 Type Scale

Class	Usage
`text-3xl font-bold`	Page titles (always white inside headers)
`text-2xl font-bold text-[#254431]`	Section headings within page body
`text-xl font-bold text-[#254431]`	Sub-section headings, card titles
`text-base` / `text-sm text-[#7A8075]`	Body text, subtitles in headers
`text-sm font-semibold text-[#7A8075] uppercase tracking-wide`	Label / caption above inputs and stat cards
`text-3xl font-bold text-[#254431]`	Stat numbers on cards
`text-xs font-semibold`	Badges, chips, type indicators
`text-[10px] font-bold uppercase tracking-tight`	Micro-labels (Hidden badge, Live Draft pill)

6.2 Key Rules

Never use text-4xl or larger inside the body area. Reserve large text for the header only.
All label text above inputs must be uppercase with tracking-wide.
Stat numbers always use text-3xl font-bold text-[#254431] regardless of which page they appear on.
Truncate long strings with the truncate class rather than wrapping.

7. Page Layout

7.1 Outer Page Shell

Most pages wrap their return in an outer div with the warm background gradient. This is the dominant pattern and should be used for new pages unless the page has a specific layout requirement.

<ProtectedRoute requireAdmin>
  <div className="min-h-screen bg-gradient-to-br from-[#F7F2EA] via-[#E4EBE4] to-[#F7F2EA]">
    {/* Header */}
    <div className="bg-gradient-to-r from-[#254431] to-[#356B43] ...">
      ...
    </div>   {/* header closes HERE */}
    {/* Main Content */}
    <div className="max-w-7xl mx-auto px-6 py-6">
      ...
    </div>
  </div>
</ProtectedRoute>

7.2 Max Width Constraint

max-w-7xl mx-auto is the standard container used across most pages (header interior, main content, alerts).
Known exceptions exist (for example Form Editor header uses max-w-[100vw]) and should be treated as intentional per-page overrides.

7.3 Main Content Padding

The main content div uses responsive padding: px-4 sm:px-6 py-4 sm:py-6 on most pages. Inner sections add their own vertical spacing via mb-6 or space-y-6.

7.4 Three-Column Admin Layout (Form Editor)

The Form Editor uses a special three-column layout inside the main content area:

Left sidebar: w-[220px] flex-shrink-0 - section navigation
Centre column: flex-1 min-w-0 - question list and editor
Right panel: w-[340px] flex-shrink-0 hidden lg:block - live preview (desktop only)

The three columns are wrapped in a flex gap-8 container inside a DndContext provider.

8. Header Component

The application uses a shared green-header style but not one identical markup structure on every page. Most pages use a full-width dark-green banner with logo/title/subtitle and optional right-side actions.

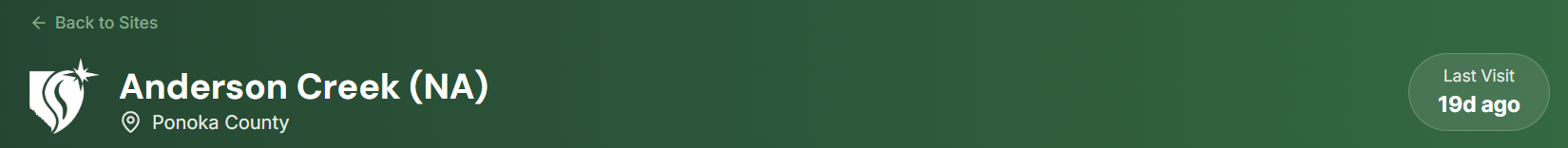

UI Header Component

8.1 Standard Header (Primary Site/Detail Pattern)

Headers use responsive padding and font sizes to adapt to different screen sizes:

<div className="bg-gradient-to-r from-[#254431] to-[#356B43] text-white px-4 sm:px-6 py-4 shadow-lg">
  <div className="max-w-7xl mx-auto">
    {/* Optional back button */}
    <button className="flex items-center gap-1.5 text-[#86A98A] hover:text-white
                        transition-colors mb-4 group">
      <ArrowLeft className="w-4 h-4 group-hover:-translate-x-1 transition-transform" />
      <span className="text-sm font-medium">Back to Sites</span>
    </button>
    <div className="flex items-start justify-between flex-col sm:flex-row">
      <div className="flex items-start gap-4">
        <Image src="/images/sapaa-icon-white.png" alt="SAPAA"
               width={140} height={140} priority
               className="h-12 sm:h-16 w-auto flex-shrink-0 opacity-80 mt-1" />
        <div>
          <h1 className="text-2xl sm:text-3xl font-bold">{title}</h1>
          <div className="flex items-center gap-2 text-[#E4EBE4] mt-1">
            <Icon className="w-4 h-4 sm:w-5 sm:h-5" />
            <span className="text-sm sm:text-base">{subtitle}</span>
          </div>
        </div>
      </div>
      {/* Right side: badge, status, or user pill */}
    </div>
  </div>
</div>

8.2 Admin Header (with AdminNavBar)

Admin pages include AdminNavBar near the top of the page. Some pages override nav background/shadow using the child selector approach:

<div className="[&>nav]:bg-none [&>nav]:bg-transparent [&>nav]:shadow-none
                [&>nav]:px-0 [&>nav]:py-0">
  <AdminNavBar />
</div>

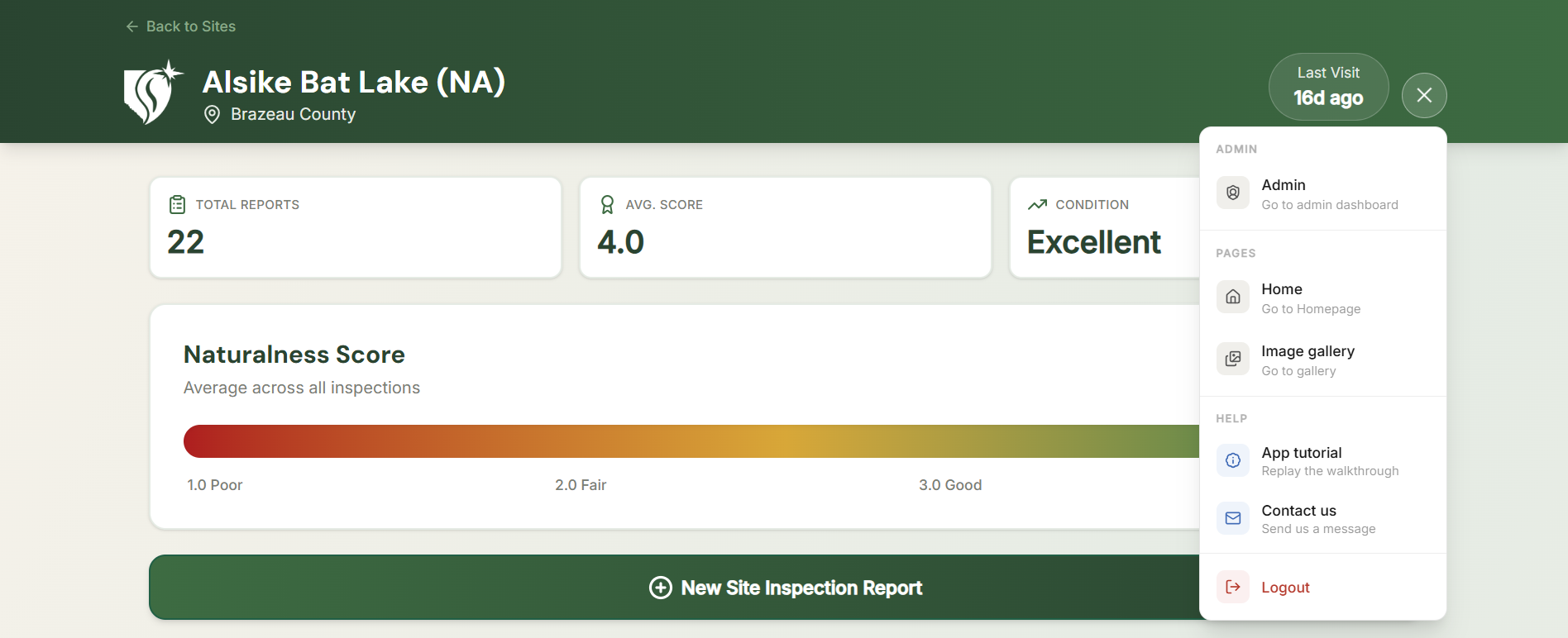

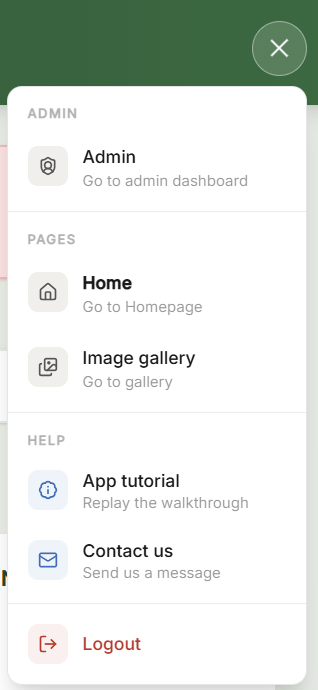

UI Admin Header & AdminNavBar

8.3 Header with Action Button (Account Management)

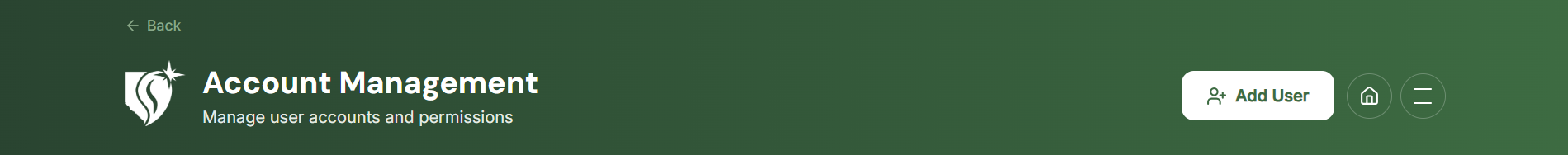

When a page needs a primary action button in the header, it is grouped together with the AdminNavBar in a single right-side container:

<div className="flex items-center gap-3">
  <button onClick={...}
          className="bg-white text-[#356B43] px-6 py-3 rounded-xl font-semibold
                      hover:shadow-lg transition-all flex items-center gap-2">
    <UserPlus className="w-5 h-5" />
    Add User
  </button>
  <div className="[&>nav]:bg-none [&>nav]:bg-transparent ...">
    <AdminNavBar />
  </div>
</div>

UI Header with Action Button

8.4 SAPAA Logo

Property	Current Usage
Source	`/images/sapaa-icon-white.png`
Size/CSS	Varies by page (e.g., `140x140` with large header treatment, and compact `24x24` icon in report pages)
Alt text	Varies by page (`"SAPAA"` on many headers, `"Logo"` on current new/edit report pages)
Priority	Used where appropriate for above-the-fold logo rendering

8.5 Back Button

Back navigation exists on detail/report pages but currently has two variants: - Text + icon ("Back to Sites") on Site Detail. - Icon-only circular button (ArrowLeft) on New/Edit Report pages.

Property	Current Usage
Text	Site Detail uses `"Back to Sites"`; New/Edit Report currently use icon-only back buttons
Icon	`ArrowLeft` used in all back-navigation variants
Spacing/Placement	Page-specific (either above header row as text link, or inline in title row as icon button)

9. Stats Cards

Two stats card styles exist in the application. The Large Icon style is the preferred convention for all admin pages.

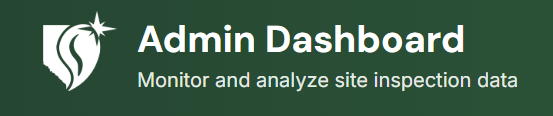

UI Stats Card

9.1 Large Icon Style (Preferred - Admin Pages)

Used on the Admin Dashboard, Account Management, and any new admin pages. Features a 48x48 gradient icon container beside the label and value:

<div className="bg-white rounded-2xl p-6 border-2 border-[#E4EBE4] shadow-sm">
  <div className="flex items-center gap-4">
    <div className="w-12 h-12 bg-gradient-to-br from-[#356B43] to-[#254431]
                    rounded-xl flex items-center justify-center">
      <Icon className="w-6 h-6 text-white" />
    </div>
    <div>
      <div className="text-sm font-semibold text-[#7A8075] uppercase tracking-wide">
        Label
      </div>
      <div className="text-3xl font-bold text-[#254431]">{value}</div>
    </div>
  </div>
</div>

9.2 Compact Style (Legacy - Site List Header)

Used only in the HomeClient stats strip. Kept for backward compatibility but should not be used on new pages.

<div className="bg-white rounded-xl p-4 border-2 border-[#E4EBE4] shadow-sm">
  <div className="flex items-center gap-2 mb-2">
    <Icon className="w-5 h-5 text-[#356B43]" />
    <div className="text-sm text-[#7A8075] font-medium uppercase tracking-wide">Label</div>
  </div>
  <div className="text-3xl font-bold text-[#254431]">{value}</div>
</div>

9.3 Stats Grid Layout

Property	Value
Admin Grid	`grid grid-cols-1 md:grid-cols-3 gap-6`
Site List Grid	`grid grid-cols-2 md:grid-cols-5 gap-4` (compact strip)
Card radius	`rounded-2xl` (large style) / `rounded-xl` (compact)
Card padding	`p-4 sm:p-5` (responsive) / `p-6` (large) / `p-4` (compact)
Border	`border-2 border-[#E4EBE4]`

9.4 Coloured Card Variants

When a card needs semantic colour (e.g., role summaries, status counts), override the background and border:

Variant	Classes
Green	`bg-[#D1FAE5] border-2 border-[#065F46]/20`
Red	`bg-[#FEE2E2] border-2 border-[#B91C1C]/20`
Amber	`bg-[#FEF3C7] border-2 border-[#92400E]/20`

9.5 Clickable / Linked Card

When a card is a navigation link (e.g., Image Gallery on the dashboard), wrap it in a Next.js Link with block display and hover elevation:

<Link href="/admin/gallery" className="block">
  <div className="bg-white rounded-2xl p-6 border-2 border-[#E4EBE4] shadow-sm
                  hover:border-[#86A98A] hover:shadow-lg transition-all h-full">
    ...
  </div>
</Link>

10. Status Badges

Inspection status is communicated through inline coloured badges. Badge style follows the pattern: rounded-full px-3 py-1 text-xs font-semibold.

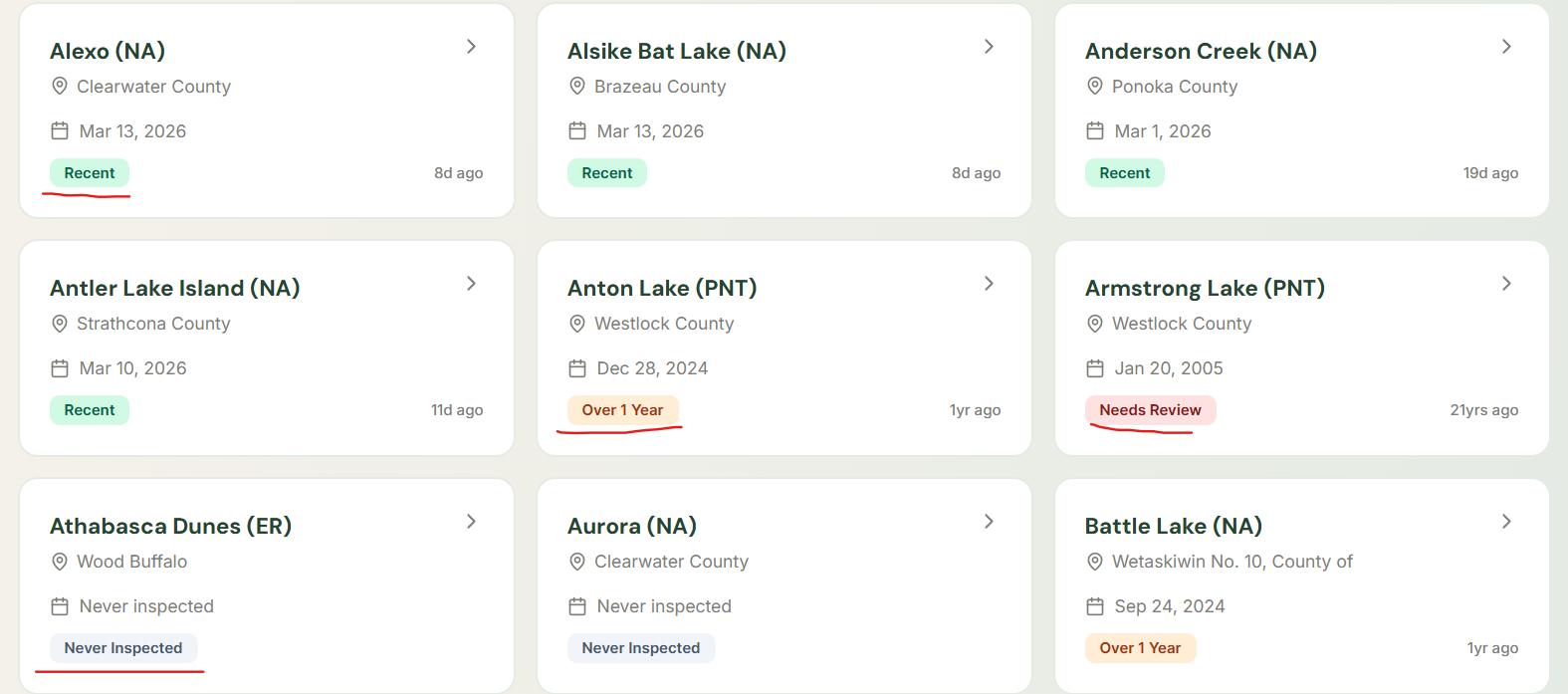

UI Status Badges

10.1 Inspection Status Badges

Label	Text colour	Background	Condition
Never Inspected	`#475569`	`#F1F5F9`	No inspection on record
Recently Inspected	`#065F46`	`#D1FAE5`	Within 180 days
Inspected This Year	`#92400E`	`#FEF3C7`	181–365 days
Over 1 Year Ago	`#9A3412`	`#FFEDD5`	366–730 days
Needs Review	`#7F1D1D`	`#FEE2E2`	More than 730 days

10.2 Question Type Badges (Form Editor)

Badge	Condition
Required	Shown on question cards when `is_required = true`
Hidden	Shown on question card when `is_active = false` - `bg-gray-200 text-gray-600`
LIVE DRAFT	Shown on preview panel header when Add Question form is open - `animate-pulse`

10.3 General Badge Pattern

{/* Standard badge */}
<span className="text-xs font-semibold px-3 py-1 rounded-full">
  {label}
</span>

{/* Micro badge (10px) for cards */}
<span className="text-[10px] px-1.5 py-0.5 rounded-full font-bold uppercase tracking-tight">
  {label}
</span>

11. Buttons

UI Buttons

11.1 Primary Button

Used for the main action on a page or section. Always uses the forest gradient.

<button className="flex items-center gap-2 px-4 py-2.5
                   bg-gradient-to-r from-[#356B43] to-[#254431]
                   text-white text-sm font-semibold rounded-xl
                   hover:shadow-lg transition-all disabled:opacity-50">
  <Icon className="w-4 h-4" />
  Label
</button>

11.2 Secondary / Ghost Button

Used alongside a primary button for cancel or alternate actions.

<button className="px-4 py-2.5 border-2 border-[#E4EBE4] text-[#7A8075]
                   text-sm font-semibold rounded-xl hover:bg-[#E4EBE4]
                   transition-all">
  Cancel
</button>

11.3 Header Primary Button (White on Green)

Used when a primary action lives inside the green header. Background is white with green text to contrast against the dark header.

<button className="bg-white text-[#356B43] px-6 py-3 rounded-xl font-semibold
                   hover:shadow-lg transition-all flex items-center gap-2">
  <Icon className="w-5 h-5" />
  Add User
</button>

11.4 Icon-Only Buttons

Small icon buttons used inside cards and list rows:

Variant	Classes
Edit	`w-7 h-7 rounded-lg text-[#356B43] hover:bg-[#EEF5EF]`
Toggle	`p-1.5 rounded-md` - active: `text-[#7A8075] hover:bg-[#F7F2EA]` / inactive: `text-amber-600 bg-amber-50 hover:bg-amber-100`
Delete	`w-8 h-8 rounded-lg text-[#B91C1C] hover:bg-[#FEE2E2]`
Close	`ml-auto` on alert banners

11.5 Text Link Button

Used for secondary in-body actions like "+ Add a question":

<button className="text-sm text-[#356B43] font-semibold hover:underline
                   flex items-center gap-1">
  <Plus className="w-3.5 h-3.5" />
  Add a question
</button>

Small square icon button in a sidebar header:

<button className="w-7 h-7 bg-[#E4EBE4] hover:bg-[#356B43] hover:text-white
                   text-[#356B43] rounded-lg flex items-center justify-center
                   transition-all">
  <Plus className="w-4 h-4" />
</button>

12. Form Inputs

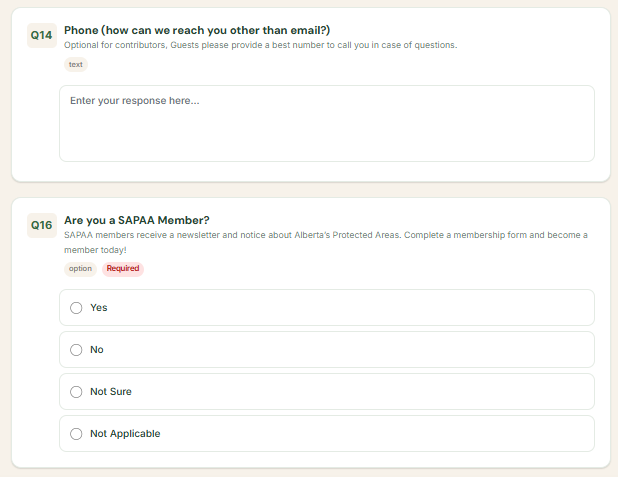

UI Form Input 1

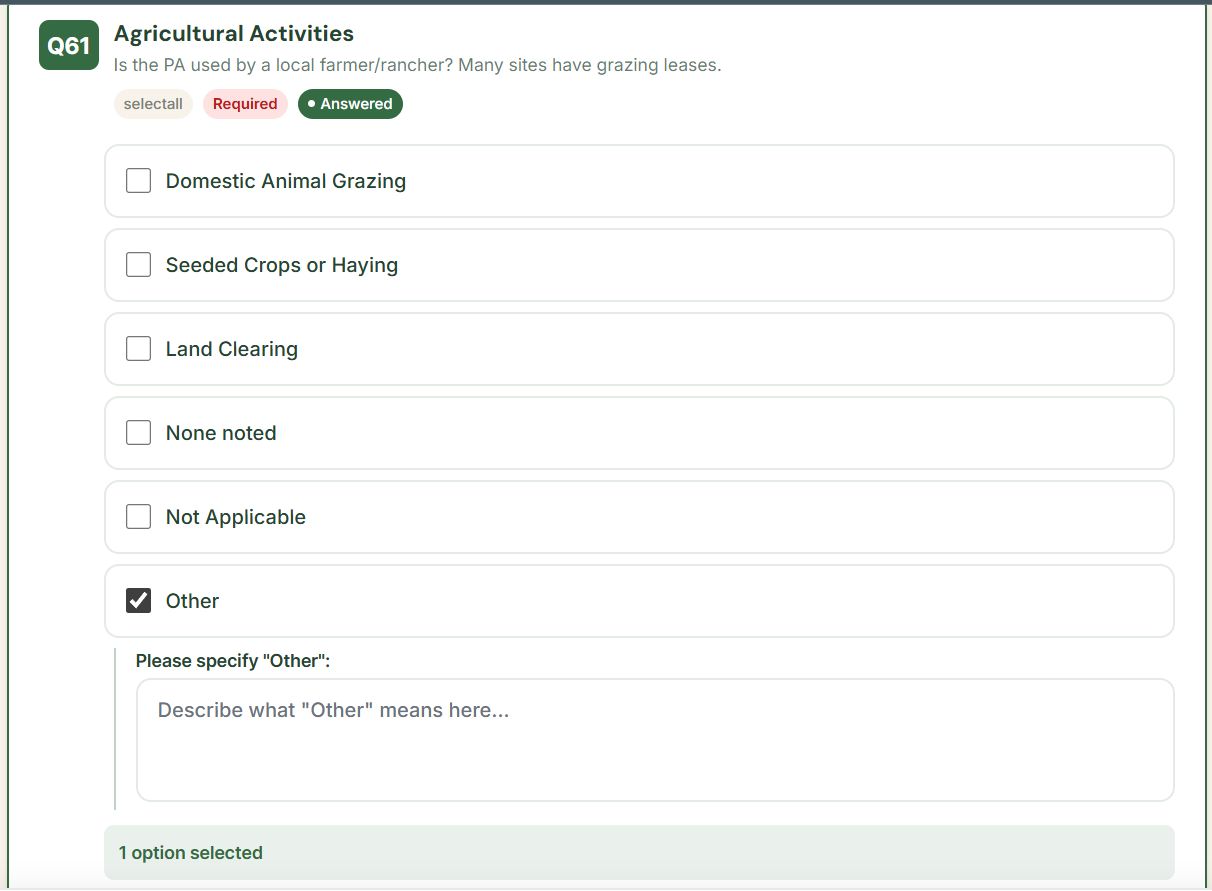

UI Form Input 2

12.1 Standard Text Input

<input type="text"
  className="w-full px-3 py-2.5 border-2 border-[#E4EBE4] rounded-xl text-sm
             focus:outline-none focus:border-[#356B43] transition-colors
             placeholder:text-[#7A8075]" />

12.2 Textarea

<textarea rows={2}
  className="w-full px-3 py-2.5 border-2 border-[#E4EBE4] rounded-xl text-sm
             focus:outline-none focus:border-[#356B43] resize-none transition-colors
             placeholder:text-[#7A8075]" />

12.3 Checkbox

<input type="checkbox"
  className="w-4 h-4 text-[#356B43] rounded focus:ring-[#356B43]" />

12.4 Label Pattern

All input labels follow the same uppercase tracking-wide pattern and sit above the input with mt-1 on the control:

<label className="text-xs font-semibold text-[#7A8075] uppercase tracking-wide">
  Field Name
</label>
<input className="... mt-1" />

12.5 Input Container (Inline Form Card)

When a mini-form appears inline (Add Section form, Edit Question form), it is wrapped in:

<div className="bg-white border-2 border-[#356B43] rounded-xl p-5 shadow-md">
  ...
</div>

The green border signals that this area is in an active edit state. The form actions bar at the bottom is separated by a top border:

<div className="flex gap-2 mt-5 pt-4 border-t-2 border-[#E4EBE4]">
  {/* primary + secondary buttons */}
</div>

13. Cards and Panels

UI Standard Card

13.1 Standard White Card

The default content container used throughout the application:

<div className="bg-white rounded-2xl border-2 border-[#E4EBE4] shadow-sm p-6">
  ...
</div>

Property	Value
Border radius	`rounded-2xl` (preferred) or `rounded-xl` (compact contexts)
Border	`border-2 border-[#E4EBE4]` - always 2px, always sage green
Shadow	`shadow-sm` at rest, `shadow-lg` on hover (for interactive cards)
Padding	`p-6` (standard) / `p-4` (compact sidebar cards) / `p-5` (form cards)

<div className="bg-white rounded-2xl border-2 border-[#E4EBE4] p-4">
  <div className="flex items-center justify-between mb-4">
    <h3 className="text-sm font-bold text-[#254431] uppercase tracking-wide">
      Sections
    </h3>
    {/* action button */}
  </div>
  {/* list */}
</div>

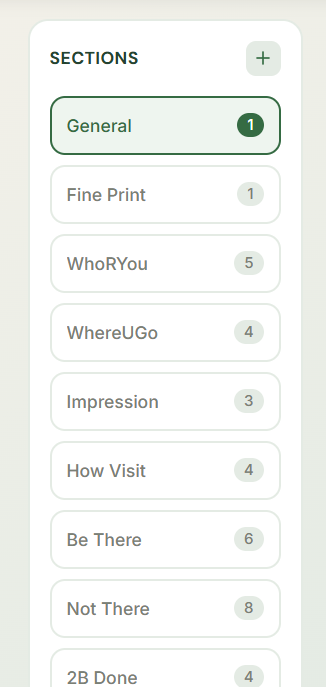

UI Sidebar

13.3 Sticky Preview Panel

The right-side preview panel in the Form Editor is sticky so it stays visible while scrolling:

<div className="bg-[#F7F2EA] rounded-2xl border-2 border-[#E4EBE4] p-5 sticky top-6">
  ...
</div>

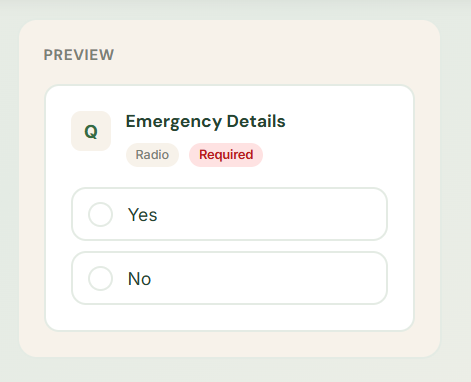

UI Sticky Preview

13.4 Active / Selected Card State

Cards that support selection toggle their border when selected:

{/* Default */}
border-[#E4EBE4] hover:border-[#86A98A]

{/* Selected */}
border-[#356B43] shadow-sm

13.5 Empty State Card

<div className="text-center py-16 bg-white rounded-2xl
                border-2 border-dashed border-[#E4EBE4]">
  <Icon className="w-12 h-12 text-[#E4EBE4] mx-auto mb-3" />
  <p className="text-[#7A8075] font-medium">No items yet.</p>
  <button className="mt-4 text-sm text-[#356B43] font-semibold hover:underline">
    + Add one
  </button>
</div>

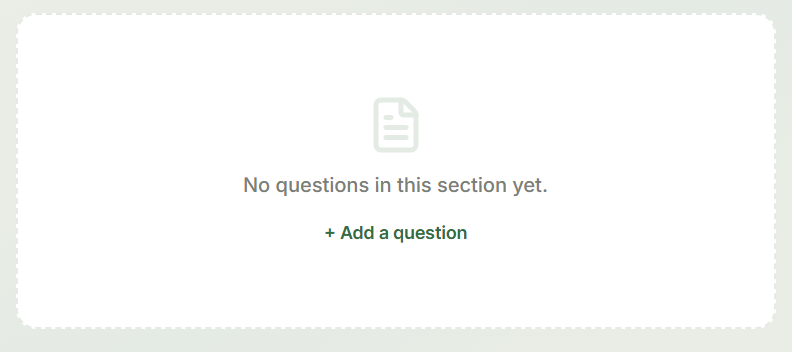

UI Empty State

14. Alerts and Feedback

14.1 Error Alert

<div className="bg-[#FEE2E2] border-2 border-[#FECACA] text-[#B91C1C]
               px-4 py-3 rounded-xl flex items-center gap-3">
  <AlertCircle className="w-5 h-5 flex-shrink-0" />
  <span className="text-sm font-medium">{error}</span>
  <button onClick={() => setError(null)} className="ml-auto">
    <X className="w-4 h-4" />
  </button>
</div>

14.2 Success Alert

<div className="bg-[#DCFCE7] border-2 border-[#BBF7D0] text-[#166534]
               px-4 py-3 rounded-xl flex items-center gap-3">
  <span className="text-sm font-medium">{successMessage}</span>
</div>

UI Success Alert

14.3 Alert Behaviour

Alerts appear immediately below the header, inside the max-w-7xl mx-auto px-6 pt-4 container.
Success messages auto-dismiss after 3 seconds using setTimeout(() => setSuccessMessage(null), 3000).
Error alerts include a manual dismiss button (X icon, ml-auto).
Both use border-2 (not border-1) for visual weight consistency with cards.

15. Loading States

15.1 Full-Page Loader

When a page is loading its initial data, render a centred spinner on the page background:

<ProtectedRoute requireAdmin>
  <div className="min-h-screen bg-gradient-to-br from-[#F7F2EA] via-[#E4EBE4]
                  to-[#F7F2EA] flex flex-col items-center justify-center gap-4">
    <Loader2 className="w-12 h-12 text-[#356B43] animate-spin" />
    <p className="text-[#7A8075] font-medium">Loading...</p>
  </div>
</ProtectedRoute>

UI Page Loading

15.2 Button Loading State

When a save/submit operation is in progress, replace the button icon with a spinning Loader2:

<button disabled={saving} ...>
  {saving ? <Loader2 className="w-4 h-4 animate-spin" /> : <Save className="w-4 h-4" />}
  {saving ? 'Saving...' : 'Save Changes'}
</button>

UI Button Loading

15.3 Leaflet / Map SSR Guard

The Leaflet map component cannot render server-side. Use a mounted state flag to prevent SSR errors:

const [mounted, setMounted] = useState(false);
useEffect(() => { setMounted(true); }, []);

{mounted
  ? <Map points={points} />
  : <div className="h-full flex items-center justify-center bg-[#F7F2EA]">
      <Loader2 className="w-8 h-8 text-[#356B43] animate-spin" />
    </div>
}

16. Drag and Drop

The Form Editor implements drag-and-drop question reordering using @dnd-kit. These conventions must be followed for correct behaviour.

16.1 Setup

const sensors = useSensors(
  useSensor(PointerSensor, { activationConstraint: { distance: 8 } })
);

<DndContext
  sensors={sensors}
  collisionDetection={rectIntersection}
  onDragEnd={handleDragEnd}
>
  <SortableContext
    items={currentQuestions.map(q => q.id)}
    strategy={verticalListSortingStrategy}
  >
    ...
  </SortableContext>
</DndContext>

16.2 Drag Handle

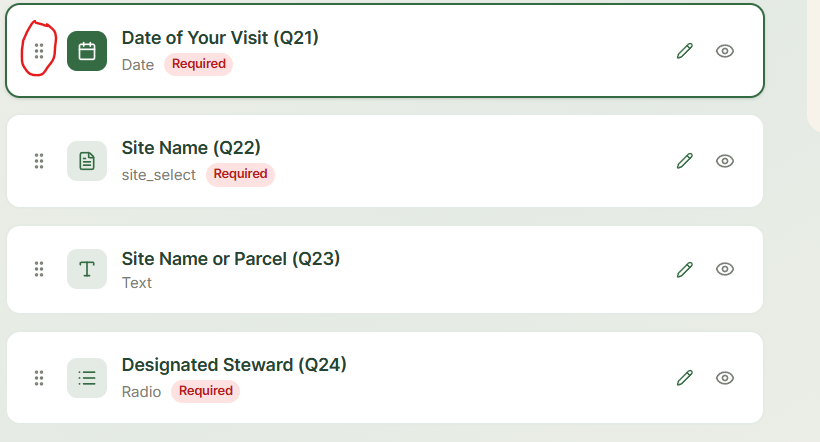

Each sortable item exposes only a grip handle (not the whole card) as the drag trigger. The handle uses touch-none and stops click propagation to avoid triggering card selection:

<button {...attributes} {...listeners}
  className="touch-none flex-shrink-0 cursor-grab active:cursor-grabbing
             p-0.5 rounded hover:bg-[#E4EBE4] transition-colors"
  onClick={e => e.stopPropagation()}>
  <GripVertical className="w-4 h-4 text-[#7A8075]" />
</button>

UI Drag Handle

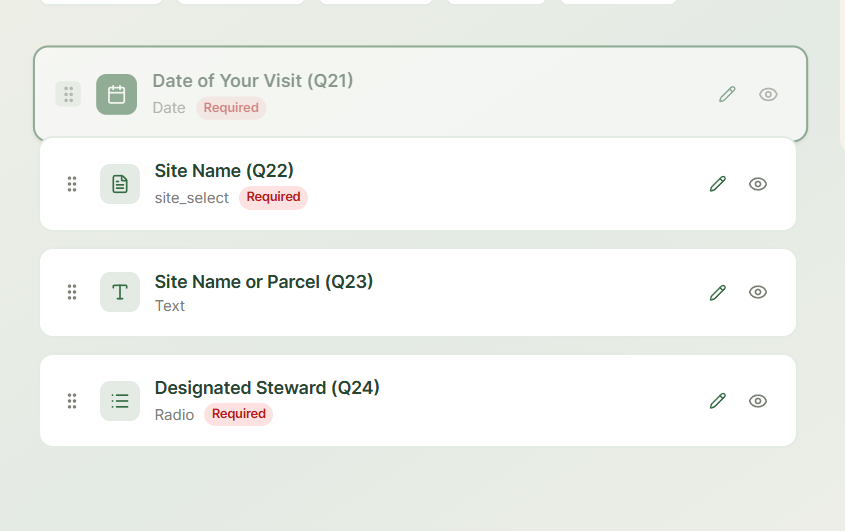

16.3 Drag Visual Feedback

State	Classes
Dragging card	`opacity-50`, `shadow-lg`, `scale-[1.02]`
Drop target section	`bg-[#DCFCE7] border-[#22C55E] scale-[1.03] shadow-md`
Section count pill	`bg-[#22C55E] text-white` when over

UI Drag Visual Feedback

17. UserNavBar

The UserNavBar component (components/HeaderDropdown.tsx) is the primary navigation component for all steward-facing pages. It renders an animated hamburger menu in the page header.

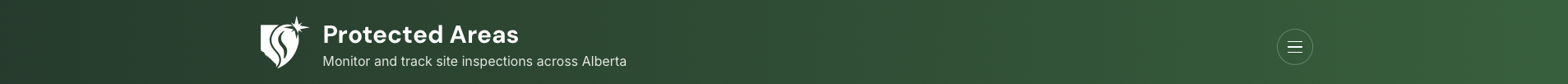

UI UserNavBar

17.1 Structure

The menu is divided into four sections, separated by thin borders:

Section	Items	Condition
Admin	Admin Dashboard link	Only visible when `currentUser.role === 'admin'`
Pages	Home (`/sites`), Image Gallery (`/gallery`)	Always visible
Help	App Tutorial (triggers `onStartTutorial`), Contact Us (mailto link)	Always visible
Logout	Logout button	Always visible

17.2 Hamburger Button

<button
  onClick={() => setMenuOpen(!menuOpen)}
  title="Open menu"
  className={`w-11 h-11 rounded-full border flex flex-col items-center justify-center gap-[5px] transition-all
    ${menuOpen
      ? 'bg-white/15 border-white/40'
      : 'bg-transparent border-white/25 hover:bg-white/10'
    }`}
>
  {/* Three animated lines → X */}
  <span className={`block w-[18px] h-[1.5px] bg-white rounded-full transition-all duration-200
    ${menuOpen ? 'translate-y-[6.5px] rotate-45' : ''}`} />
  <span className={`block w-[18px] h-[1.5px] bg-white rounded-full transition-all duration-200
    ${menuOpen ? 'opacity-0' : ''}`} />
  <span className={`block w-[18px] h-[1.5px] bg-white rounded-full transition-all duration-200
    ${menuOpen ? '-translate-y-[6.5px] -rotate-45' : ''}`} />
</button>

The dropdown is positioned absolutely below the trigger and uses a fixed backdrop for outside-click dismissal:

{/* Backdrop — closes menu on outside click */}
<div className="fixed inset-0 z-40" onClick={() => setMenuOpen(false)} />

{/* Menu panel */}
<div className="absolute right-0 top-[calc(100%+8px)] w-60 bg-white rounded-xl
                shadow-xl border border-black/10 overflow-hidden z-50">
  ...
</div>

Each item follows a consistent layout with a 32x32 icon container and label/description:

<button className="w-full flex items-center gap-3 px-4 py-2.5 hover:bg-[#f5f5f3] transition-colors">
  <span className="w-8 h-8 rounded-lg bg-[#f0efeb] flex items-center justify-center flex-shrink-0">
    <Icon className="w-4 h-4 text-[#555]" />
  </span>
  <div className="text-left">
    <span className="text-sm font-medium text-[#1a1a1a]">Label</span>
    <p className="text-xs text-black/40">Description text</p>
  </div>
</button>

17.5 Active Page Bolding

The current page is indicated by bolding the menu item label. The active route is detected via usePathname():

<span className={`text-sm text-[#1a1a1a] ${
  pathname === ROUTES.home ? "font-bold" : "font-medium"
}`}>

17.6 Icon Colour Conventions

Section	Icon Container Background	Icon Colour
Admin	`bg-[#f0efeb]`	`text-[#555]`
Pages	`bg-[#f0efeb]`	`text-[#555]`
Help	`bg-[#eef4fb]`	`text-[#2a6db5]`
Logout	`bg-[#fdf0f0]`	`text-[#c0392b]`

17.7 Props

Prop	Type	Description
`onStartTutorial`	`() => void` (optional)	Callback to trigger the react-joyride tutorial overlay

17.8 Test-Critical Elements

Menu trigger button: title="Open menu"
Menu item labels: Home, Image gallery, App tutorial, Contact us, Admin, Logout
Logout action calls logout() then navigates to /login

18. AdminNavBar

The AdminNavBar component is shared across all admin pages. Its internal structure must not be modified since UI tests depend on specific elements being present.

UI AdminNavbar

18.1 Test-Critical Elements

A home link to /sites (currently icon-only Home, no visible "Home" text label).
A button with title="admin dropdown menu" (hamburger/menu trigger).
Dropdown item labels (Dashboard, Account Management, Sites, Form Editor).

18.2 Current Spacing

Current AdminNavBar buttons use p-2 and do not include ml-2 on the hamburger button.

18.3 Inline Rendering in Headers

When rendered inside a page header, AdminNavBar's background is overridden with the child selector approach described in Section 8.2.

19. Image Upload

The application supports two distinct image upload workflows: homepage gallery uploads (via the UploadImages component) and Site Inspection Report (SIR) image attachments (inline within the report form). Both use drag-and-drop with presigned S3 URLs.

19.1 Homepage Image Upload (`UploadImages` Component)

The UploadImages component (components/UploadImages.tsx) provides a floating action button (FAB) and full-screen modal for uploading images to the homepage gallery. It is rendered on the Sites dashboard (/sites).

UI Upload FAB

FAB (Floating Action Button)

<button className="fixed bottom-8 right-8 z-50 flex items-center gap-2 px-5 py-3.5
                   bg-gradient-to-r from-[#356B43] to-[#254431]
                   hover:from-[#254431] hover:to-[#356B43]
                   text-white text-sm font-semibold rounded-full shadow-lg
                   transition-all hover:-translate-y-0.5">
  <Upload size={16} />
  Upload Images
</button>

The modal uses a full-screen overlay with a responsive layout that stacks on mobile and sits side-by-side on desktop:

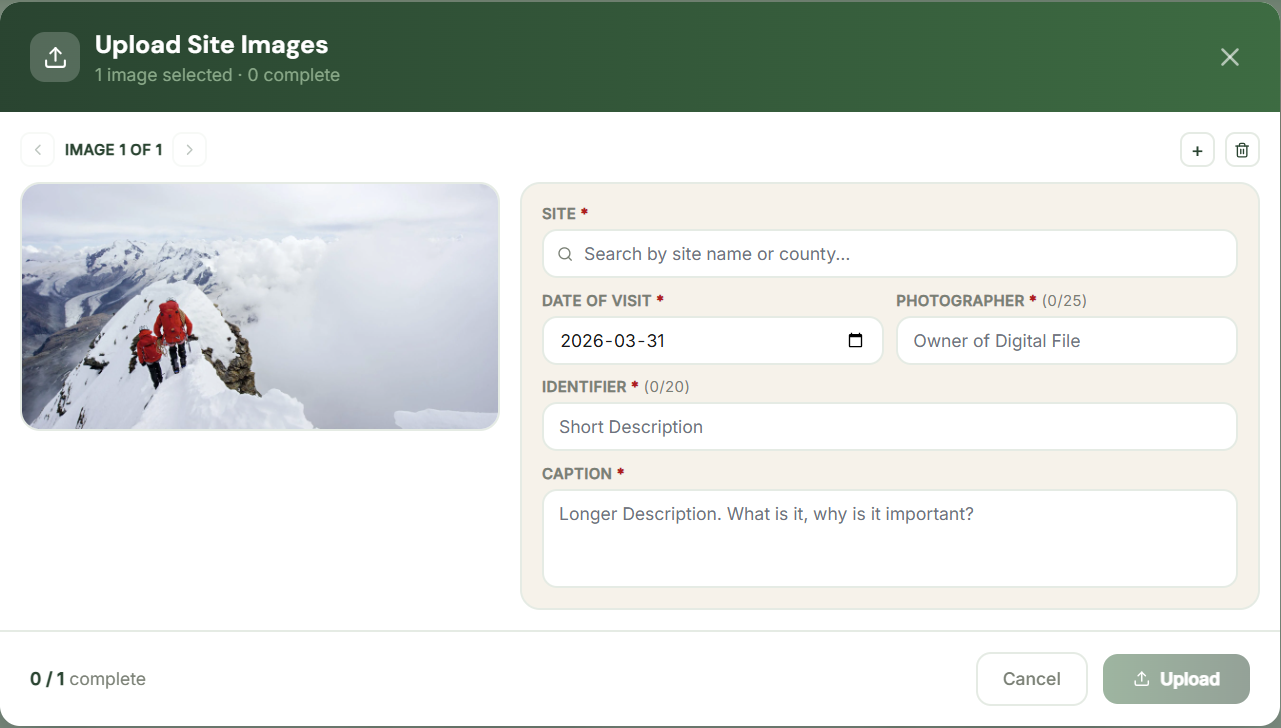

UI Upload Modal

{/* Overlay */}
<div className="fixed inset-0 z-[200] flex items-center justify-center
                bg-[#254431]/60 backdrop-blur-md p-4">
  {/* Modal container */}
  <div className="bg-white rounded-2xl w-full max-w-5xl shadow-2xl
                  overflow-hidden flex flex-col max-h-[90vh]">
    {/* Header — gradient banner */}
    {/* Body — scrollable content */}
    {/* Footer — status + action buttons */}
  </div>
</div>

Drop Zone (Empty State)

When no images are selected, the modal shows a dashed-border drop zone:

<div className="border-2 border-dashed rounded-2xl p-8 sm:p-12 text-center
                cursor-pointer transition-colors border-[#E4EBE4] bg-[#F7F2EA]
                hover:border-[#356B43]">
  <ImageIcon size={32} className="mx-auto mb-3 text-[#86A98A]" />
  <p className="text-sm text-[#7A8075]">
    Drop images here or <span className="text-[#356B43] font-semibold underline">browse files</span>
  </p>
  <p className="text-xs text-[#7A8075]/60 mt-1">JPEG, PNG, HEIC supported</p>
</div>

Per-Image Editor

Once images are added, the editor shows a carousel with navigation and a responsive metadata form:

{/* Preview + fields — stacks on mobile, side by side on desktop */}
<div className="flex flex-col lg:flex-row gap-4">
  {/* Image preview */}
  <div className="w-full lg:w-96 flex-shrink-0">
    <img className="w-full object-cover rounded-2xl border-2 border-[#E4EBE4]"
         style={{ maxHeight: '360px' }} />
  </div>
  {/* Metadata fields on cream background */}
  <div className="flex-1 min-w-0 bg-[#F7F2EA] rounded-2xl border-2 border-[#E4EBE4] p-4">
    ...
  </div>
</div>

Required Metadata Fields

Field	Type	Validation
Site	Searchable dropdown	Required — search by name or county
Date of Visit	Date picker	Required — max today
Photographer	Text input	Required — max 25 characters (no whitespace counted)
Identifier	Text input	Required — max 20 characters (short description)
Caption	Textarea	Required — longer description

Upload Flow

User selects/drops images → FileEntry objects created with previews
User fills metadata for each image via carousel navigation
Completion status tracked: {completed} / {total} complete
Upload button enabled only when all images have complete metadata
Presigned URLs fetched from /api/s3/presign-homepage-images
Files PUT directly to S3, then metadata rows inserted via insertHomepageImageUpload
On success, redirects to /sites?image-upload=true (triggers success toast)

<div className="border-t-2 border-[#E4EBE4] px-4 sm:px-6 py-4 flex-shrink-0">
  {/* Error alert (if upload failed) */}
  <div className="flex items-center justify-between gap-3">
    <p className="text-sm text-[#7A8075]">
      <strong>{completed} / {total}</strong> complete
    </p>
    <div className="flex items-center gap-2 sm:gap-3">
      <button className="... border-2 border-[#E4EBE4] text-[#7A8075] ...">Cancel</button>
      <button data-testid="upload-submit-btn" className="... bg-gradient-to-r from-[#356B43] to-[#254431] ...">
        Upload
      </button>
    </div>
  </div>
</div>

19.2 SIR Image Attachment (New/Edit Report)

Within Site Inspection Reports, image-type questions render an inline upload zone directly in the form. This is implemented in app/detail/[namesite]/new-report/MainContent.tsx.

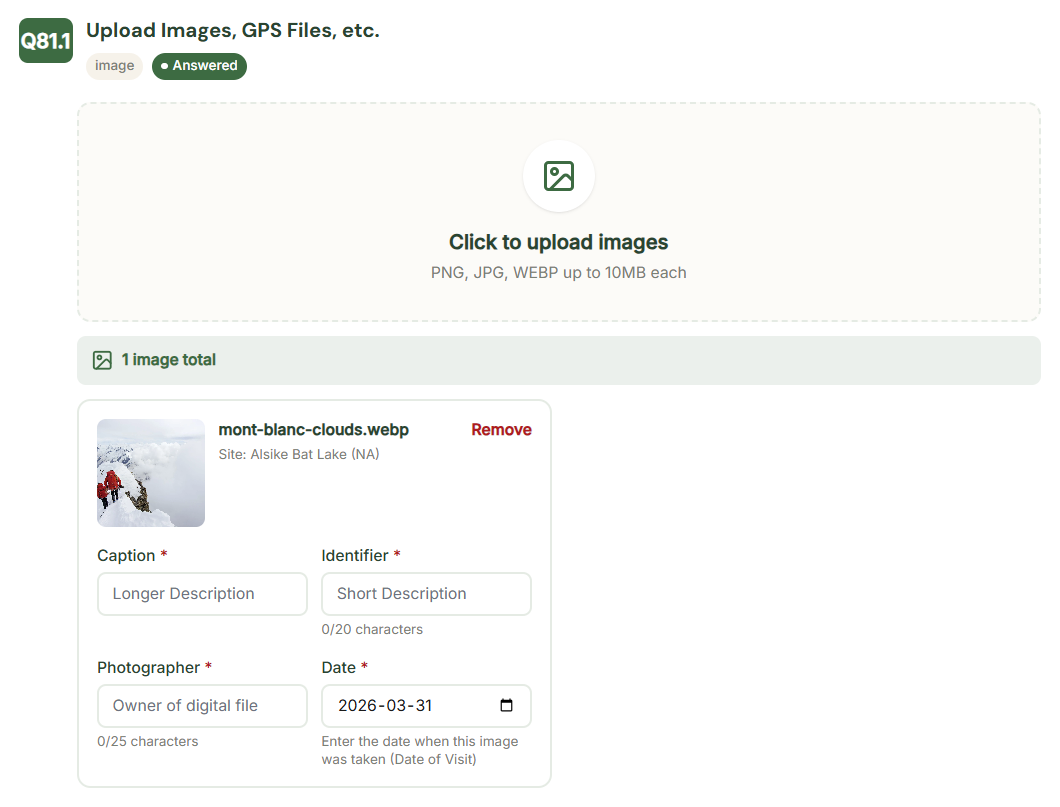

UI SIR Image Upload

Drop Zone

<div className="border-2 border-dashed rounded-xl p-8 text-center transition-colors
                bg-[#F7F2EA]/30 border-[#E4EBE4] hover:border-[#356B43]">
  <div className="w-16 h-16 bg-white rounded-full flex items-center justify-center shadow-sm mx-auto">
    <ImageIcon className="w-8 h-8 text-[#356B43]" />
  </div>
  <p className="text-[#254431] font-bold text-lg">Click to upload images</p>
  <p className="text-sm text-[#7A8075] mt-1">PNG, JPG, WEBP up to 10MB each</p>
</div>

Image Count Indicator

When images are attached, a count banner appears:

<div className="flex items-center gap-2 p-3 bg-[#356B43]/10 rounded-lg">
  <ImageIcon className="w-5 h-5 text-[#356B43]" />
  <span className="text-sm text-[#356B43] font-semibold">
    {totalCount} image{totalCount > 1 ? 's' : ''} total
    {persistedImages.length > 0 && ` (${persistedImages.length} previously uploaded)`}
  </span>
</div>

Image Cards Grid

Attached images display in a responsive two-column grid with metadata fields:

<div className="grid grid-cols-1 sm:grid-cols-2 gap-3">
  {/* Previously uploaded images — non-removable, shown with Lock icon */}
  {/* Newly selected images — removable, with editable metadata */}
</div>

Previously Uploaded Images (Edit Mode)

When editing an existing report, previously uploaded images are shown with a lock badge and cannot be removed:

Green-tinted border: border-2 border-[#356B43]/40
Lock icon with "Previously uploaded — cannot be removed or edited" message
Read-only caption and identifier fields on cream background

New Image Metadata Fields

Field	Type	Validation
Caption	Text input	Required — max 25 characters
Identifier	Textarea	Required — description of the image
Photographer	Text input	Required — max 25 characters
Date	Date picker	Required — max today

SIR Upload Flow

User drops/selects images on the question's drop zone
LocalImageEntry objects created with preview URLs
User fills caption, identifier, photographer, date per image
On form submission, presigned URLs fetched from /api/s3/presign (SIR route)
Files PUT to S3, then metadata saved to W26_attachments table
In edit mode, existing attachments shown as locked alongside new uploads

19.3 Key Differences Between Upload Contexts

Feature	Homepage Upload	SIR Image Attachment
Component	`UploadImages` (shared component)	Inline in `MainContent.tsx`
Trigger	FAB button → modal	Drop zone within form question
Layout	Full-screen modal with carousel	Inline two-column grid
Site selection	Searchable dropdown	Inherited from current site
S3 route	`/api/s3/presign-homepage-images`	`/api/s3/presign`
DB table	`insertHomepageImageUpload`	`W26_attachments`
Edit behaviour	N/A (upload only)	Locked previous + new uploads
File types	JPEG, PNG, HEIC	PNG, JPG, WEBP (10MB limit)

19.4 Test-Critical Elements

Test ID	Element
`upload-modal`	Site search container in UploadImages modal
`upload-submit-btn`	Upload submit button in UploadImages modal
`image-upload-{questionId}`	File input for SIR image questions

20. Database and Data Layer

20.1 Active Tables (W26_ prefix)

Table	Purpose
`W26_form_responses`	Inspection form submissions - primary data table
`W26_answers`	Individual question answers (`obs_value`, `question_id`, `response_id`)
`W26_questions`	Form question definitions (`form_question`, `question key`, `question_type`)
`W26_question_options`	Answer options for radio/checkbox questions
`W26_sites-pa`	Protected area site records (`namesite`, `is_active`, `id`)
`W26_attachments`	Photos attached to form responses
`W26_form_sections`	Form section metadata
`W26_ab_counties`	County/region lookup

20.2 Postgres RPC Functions

Aggregate queries are implemented as Supabase RPC functions to avoid complex client-side joins:

Function	Description
`get_naturalness_distribution()`	Returns normalised naturalness score buckets with counts from `W26_answers`
`get_top_sites_distribution()`	Returns top 5 active sites by inspection count from `W26_form_responses` and `W26_sites-pa`

20.3 Naturalness Score Normalisation

Raw obs_value data for naturalness is inconsistently stored (e.g., "4 - Great", "4 = Great", "Great"). The RPC uses ILIKE pattern matching with a CASE statement to normalise these into five canonical buckets: Great, Good, Passable, Terrible, and Cannot Answer.

21. Testing Conventions

21.1 Test IDs

Components commonly use data-testid attributes for reliable test selection. Prefer test IDs and stable semantic selectors.
Current test suites also include some CSS/text selectors where no stable test ID exists.

Test ID	Element
`section-button-{id}`	Section nav buttons in Form Editor sidebar
`section-count-{id}`	Question count pill on section buttons
`question-card-{id}`	Question row cards in Form Editor
`edit-question-button`	Pencil icon button on question cards
`edit-question-title`	Title input in Edit Question form
`edit-question-subtext`	Subtext textarea in Edit Question form
`save-question-button`	Save Changes button in Edit Question form
`cancel-button`	Cancel button in Edit Question form
`add-question-title`	Title input in Add Question form
`add-question-subtext`	Subtext textarea in Add Question form
`add-question-key`	Question key input in Add Question form
`question-type-{label}`	Type selector buttons (e.g., `question-type-Radio`)
`save-new-question`	Add Question submit button
`{question} Hide Button`	Toggle button when question is active
`{question} Show Button`	Toggle button when question is hidden

21.2 Test-Critical UI Text

The following strings/attributes are currently asserted by parts of the UI test suite:

Site detail back button: "Back to Sites"
Admin menu trigger title: "admin dropdown menu"
Logo alt text varies by page ("SAPAA" and "Logo" both exist in current implementation)

21.3 Mocking Strategy

AdminDashboard tests require these mocks:

@/utils/supabase/queries - mock the query functions directly
react-chartjs-2 - mock Pie as a simple div with data-testid="pie-chart"
chart.js - mock Chart.register, ArcElement, Tooltip, Legend
@/utils/supabase/server - mock to prevent 'use server' import errors
global.fetch - default mock in beforeEach returning { ok: true, json: async () => ({ items: [] }) }

Re-apply all query mocks in beforeEach after jest.clearAllMocks(). Import the Dashboard component only after all mocks are registered.

22. Responsive Design

The application uses a mobile-first responsive design approach. All responsive behaviour is implemented through Tailwind CSS responsive utility classes — no custom CSS media queries are used (except for dark mode preference detection in globals.css).

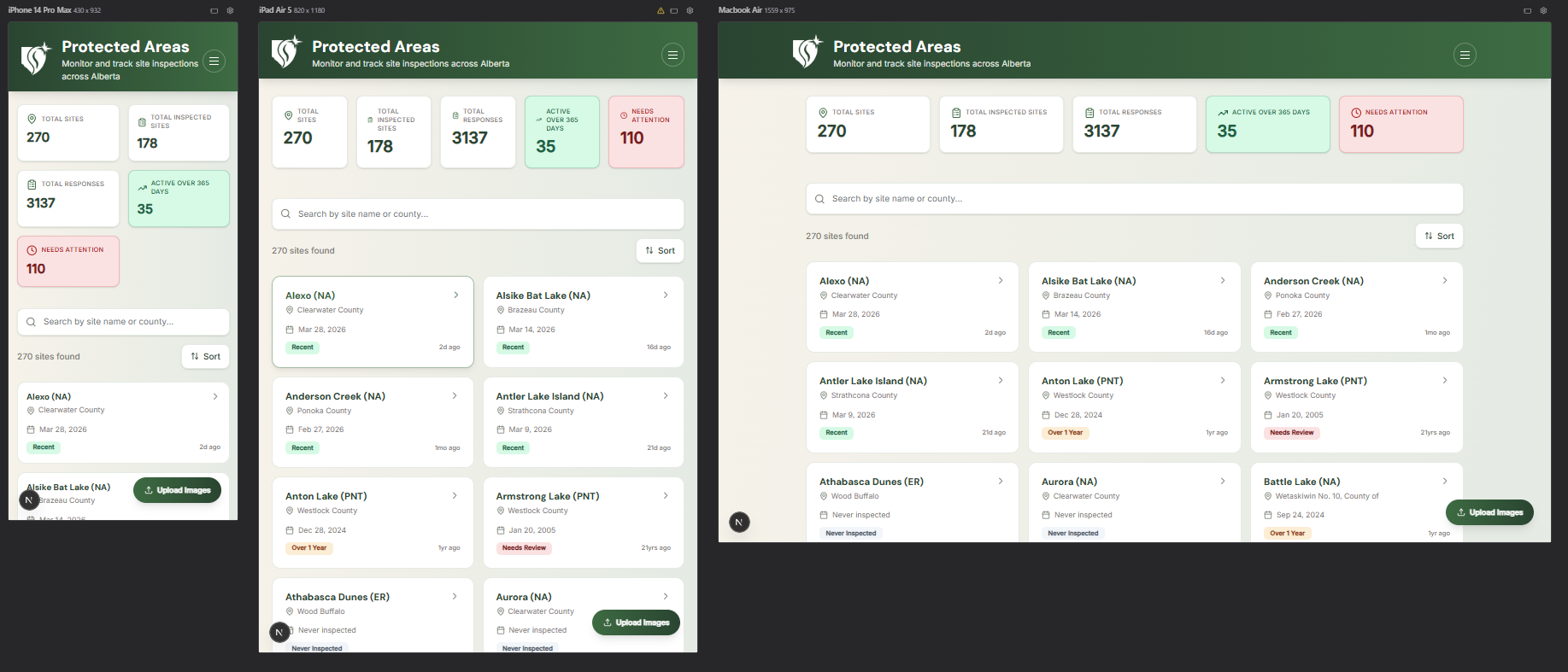

UI Responsive Overview

22.1 Breakpoints

The application follows Tailwind's standard breakpoint system:

Breakpoint	Min Width	Usage
(base)	0px	Mobile phones — single-column layouts, stacked elements
`sm:`	640px	Large phones / small tablets — two-column grids, inline buttons
`md:`	768px	Tablets — expanded stat grids, increased padding
`lg:`	1024px	Desktop — three-column grids, side-by-side modals, flex-row layouts
`xl:`	1280px	Large desktop — four-column image galleries, wider padding
`2xl:`	1536px	Extra-large — maximum content widths

22.2 Mobile-First Approach

Base styles always target the smallest screen. Larger breakpoints override progressively:

{/* Text: small on mobile, larger on tablet+ */}
className="text-2xl sm:text-3xl font-bold"

{/* Padding: tighter on mobile, more spacious on tablet+ */}
className="px-4 sm:px-6 py-4 sm:py-6"

{/* Layout: stacked on mobile, side-by-side on tablet+ */}
className="flex flex-col sm:flex-row"

22.3 Responsive Grid Layouts

The application uses several responsive grid patterns depending on content type:

Pattern	Classes	Used For
Site Cards	`grid grid-cols-1 sm:grid-cols-2 lg:grid-cols-3 gap-4`	Site listing, admin sites
Image Gallery	`grid grid-cols-1 sm:grid-cols-2 lg:grid-cols-3 xl:grid-cols-4 gap-4 sm:gap-6`	Gallery pages
Stats Strip	`grid grid-cols-2 md:grid-cols-5 gap-4`	Site list dashboard stats
Admin Stats	`grid grid-cols-1 md:grid-cols-3 gap-6`	Admin dashboard stat cards

UI Responsive Grid

Navigation uses an animated hamburger menu accessible on all screen sizes (no separate desktop navigation bar). The HeaderDropdown and AdminNavBar components implement this:

Trigger: 44x44px button (w-11 h-11) with three animated lines
Animation: Lines transform to an X icon when open via translate-y and rotate transforms
Dropdown: Fixed-width menu (w-60) positioned absolutely, with backdrop overlay
Backdrop: fixed inset-0 z-40 semi-transparent overlay for mobile touch dismissal

{/* Hamburger button — always visible, no breakpoint hiding */}
<button onClick={() => setMenuOpen(!menuOpen)}
        className="w-11 h-11 flex flex-col items-center justify-center gap-[5px] rounded-xl
                   bg-white/10 hover:bg-white/20 transition-all">
  <span className={`block h-[2px] w-5 bg-white transition-all duration-300
        ${menuOpen ? 'translate-y-[7px] rotate-45' : ''}`} />
  <span className={`block h-[2px] w-5 bg-white transition-all duration-300
        ${menuOpen ? 'opacity-0' : ''}`} />
  <span className={`block h-[2px] w-5 bg-white transition-all duration-300
        ${menuOpen ? '-translate-y-[7px] -rotate-45' : ''}`} />
</button>

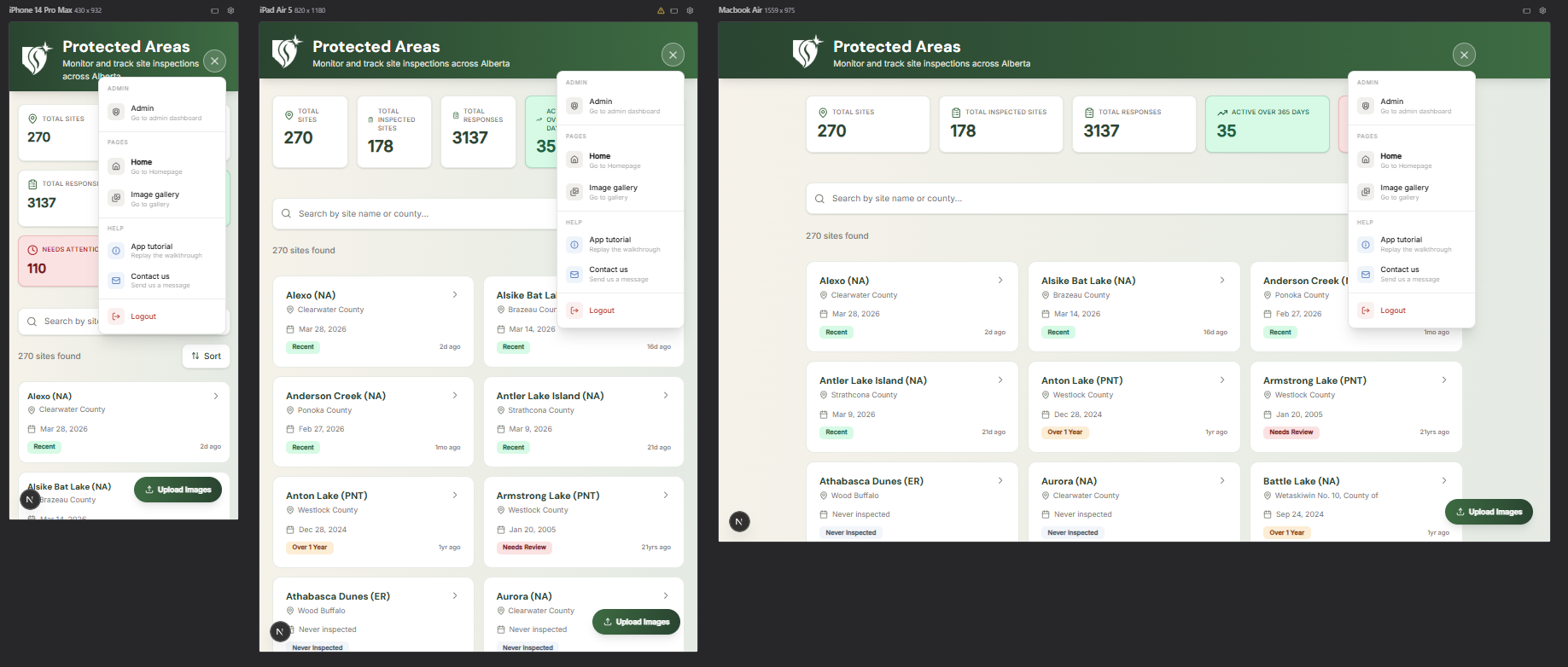

UI Hamburger Menu

22.5 Authentication Pages — Split Layout

Login and signup pages use a two-column split layout on desktop that collapses to single-column on mobile:

<div className="grid lg:grid-cols-2 min-h-screen">
  {/* Left panel: branding — hidden on mobile, visible on lg+ */}
  <div className="hidden lg:flex flex-col justify-between relative overflow-hidden
                  bg-gradient-to-br from-[#356B43] via-[#254431] to-[#356B43]
                  text-[#F7F2EA] px-12 xl:px-16 py-12">
    ...
  </div>

  {/* Right panel: form — always visible */}
  <div className="flex items-center justify-center px-6 sm:px-8 lg:px-12 py-12">
    {/* Mobile-only logo (hidden on lg+) */}
    <div className="lg:hidden flex items-center gap-3 mb-8">
      ...
    </div>
    ...
  </div>
</div>

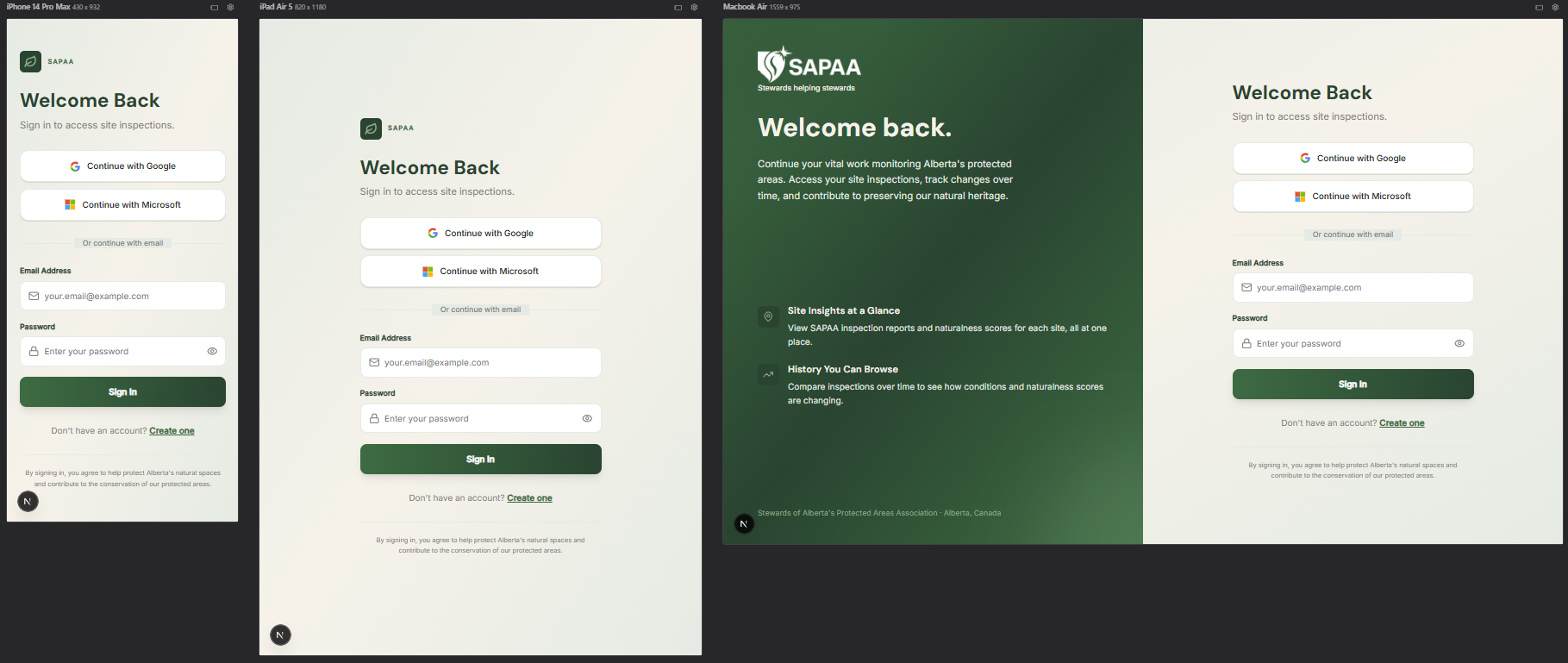

UI Login Responsive

22.6 Responsive Typography

Text sizes scale up at breakpoints to maintain readability:

Element	Mobile	Tablet (`sm:`)	Desktop (`lg:`)
Page title (header)	`text-2xl`	`text-3xl`	`text-3xl`
Section heading	`text-xl`	`text-2xl`	`text-2xl`
Stat numbers	`text-2xl`	`text-3xl`	`text-3xl`
Body text	`text-sm`	`text-base`	`text-base`
Labels/captions	`text-xs`	`text-sm`	`text-sm`
Icon sizes	`w-4 h-4`	`w-5 h-5`	`w-5 h-5`

22.7 Responsive Spacing

Padding and gap values increase at breakpoints:

Element	Mobile	Tablet (`sm:`)	Desktop (`md:`/`lg:`)
Page padding	`px-4 py-4`	`px-6 py-6`	`px-6 py-8`
Card padding	`p-4`	`p-5` or `p-6`	`p-6`
Grid gap	`gap-4`	`gap-6`	`gap-6`
Button padding	`px-4 py-2.5`	`px-5 py-2.5`	`px-5 py-2.5`

22.8 Responsive Modals

Image preview modals adapt from stacked to side-by-side layout. To capture a good screenshot, navigate to Riverlot 56 and search "Site Trails" in the gallery for a representative image with metadata.

{/* Modal overlay — responsive padding */}
<div className="fixed inset-0 z-50 bg-black/80 backdrop-blur-sm
                flex items-center justify-center p-3 sm:p-4 md:p-8">
  {/* Modal content — stacked on mobile, two-column on desktop */}
  <div className="grid grid-cols-1 lg:grid-cols-[minmax(0,1fr)_360px] flex-1 min-h-0">
    {/* Image viewer: responsive max-height */}
    <div className="max-h-[40vh] sm:max-h-[50vh] lg:max-h-[85vh]">
      <img className="object-contain" ... />
    </div>
    {/* Details sidebar: stacks below image on mobile, fixed 360px on lg+ */}
    <div className="min-h-[220px] sm:min-h-[300px] lg:min-h-0 overflow-y-auto">
      ...
    </div>
  </div>
</div>

UI Responsive Modal

The new-report and edit-report pages use a responsive sticky footer with section navigation, progress bar, and submit button:

<footer className="sticky bottom-0 bg-white border-t-2 border-[#E4EBE4]
                   p-4 md:px-8 shadow-[0_-4px_20px_rgba(0,0,0,0.05)] z-50">
  <div className="max-w-7xl mx-auto flex flex-col gap-4 lg:flex-row lg:items-end">
    {/* Section nav buttons: stacked on mobile, row on sm+ */}
    <div className="flex w-full flex-col gap-3 sm:flex-row lg:w-auto">
      <button className="w-full sm:w-auto sm:min-w-[10rem] ...">← Previous</button>
      <button className="w-full sm:w-auto sm:min-w-[10rem] ...">Next →</button>
    </div>
    {/* Progress bar: full width on mobile, fills remaining space on lg+ */}
    <div className="w-full min-w-0 lg:flex-1">...</div>
    {/* Submit: full width on mobile, auto width on sm+ */}
    <button className="w-full sm:w-auto sm:min-w-[13rem] lg:flex-shrink-0 ...">
      Review & Submit
    </button>
  </div>
</footer>

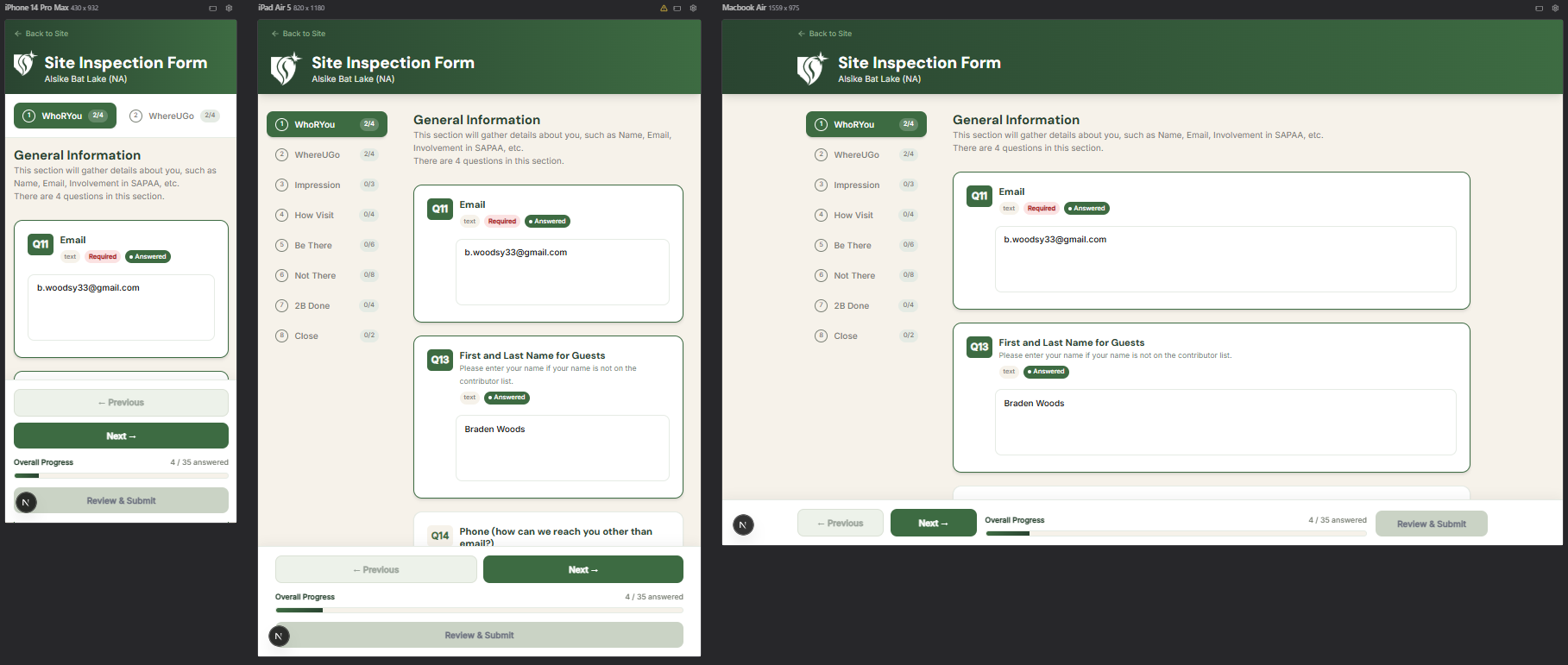

UI Responsive Footer

22.10 Responsive Visibility

Use Tailwind's hidden and display utilities to show/hide elements at breakpoints:

Pattern	Classes	Example
Mobile-only	`lg:hidden`	Compact logo on login page
Desktop-only	`hidden lg:flex`	Left branding panel on auth pages
Desktop-only (block)	`hidden lg:block`	Live preview panel in Form Editor

Important: Do not use hidden md:flex or similar on text that tests must find (see Section 21.2).

22.11 Responsive Buttons

Buttons adapt from full-width stacked layout on mobile to inline auto-width on larger screens:

{/* Full-width on mobile, auto-width side-by-side on sm+ */}
<div className="flex flex-col sm:flex-row gap-3">
  <button className="w-full sm:w-auto sm:min-w-[10rem] ...">Cancel</button>
  <button className="w-full sm:w-auto sm:min-w-[10rem] ...">Save</button>
</div>

22.12 Responsive Images

Gallery images and thumbnails use responsive heights:

Context	Mobile	Tablet (`sm:`)	Desktop (`lg:`)
Gallery card	`h-56`	`h-64`	`h-64`
Modal image	`max-h-[40vh]`	`max-h-[50vh]`	`max-h-[85vh]`
Header logo	`h-12`	`h-16`	`h-16`

All images use object-contain for proper scaling without distortion.

22.13 Files with Responsive Patterns

The following files contain significant responsive design implementation:

File	Responsive Features
`app/sites/page.tsx`	Stats grid (2→5 cols), card grid (1→2→3 cols), responsive header
`app/gallery/page.tsx`	Image grid (1→2→3→4 cols), responsive modal
`app/login/page.tsx`	Split layout (1→2 cols), hidden/visible panels
`app/signup/page.tsx`	Same split layout pattern as login
`app/detail/[namesite]/page.tsx`	Responsive site detail, expandable sections
`app/detail/[namesite]/new-report/Footer.tsx`	Sticky footer with responsive button layout
`app/admin/dashboard/page.tsx`	Responsive chart layout, stats grid
`app/admin/sites/page.tsx`	Responsive site management grid
`app/admin/gallery/page.tsx`	Responsive gallery grid
`app/admin/form-editor/page.tsx`	Three-column layout, preview panel hidden on mobile
`app/admin/account-management/page.tsx`	Responsive account cards/table
`components/HeaderDropdown.tsx`	Hamburger menu navigation
`app/admin/AdminNavBar.tsx`	Admin hamburger menu navigation
`components/UploadImages.tsx`	Responsive upload modal
`app/terms/TermsContent.tsx`	Responsive text layout

Appendix A - Quick Reference

A.1 Full Colour Tokens

Token	Value
`--forest-dark`	`#254431`
`--forest-mid`	`#356B43`
`--forest-light`	`#86A98A`
`--bg-warm`	`#F7F2EA`
`--bg-cool`	`#E4EBE4`
`--text-primary`	`#1E2520`
`--text-muted`	`#7A8075`
`--status-red`	`#B91C1C` / `#FEE2E2`
`--status-dark-red`	`#7F1D1D` / `#FEE2E2`
`--status-green`	`#065F46` / `#D1FAE5`
`--status-amber`	`#92400E` / `#FEF3C7`
`--status-orange`	`#9A3412` / `#FFEDD5`
`--status-slate`	`#475569` / `#F1F5F9`

A.2 Checklist for New Pages

Wrap the return in a min-h-screen container (gradient pattern is preferred for most pages).
Build the header using a green-banner pattern with page-appropriate variant (standard site-detail header, admin header with AdminNavBar, or compact report header).
Close the header div before opening the main content div.
Use the large icon stats card style (Section 9.1) for all new admin stats.
Prefer W26_ tables for new work; do not add new dependencies on legacy sites_* tables.
Add data-testid to all interactive elements.
Do not use hidden md:flex on text that tests must find.
Wrap Leaflet maps in a mounted guard (Section 15.3).
Use responsive padding: px-4 sm:px-6 for horizontal padding, py-4 sm:py-6 for vertical.
Use responsive grids: Start with grid-cols-1 and scale up with sm:grid-cols-2 lg:grid-cols-3.
Use responsive text sizes: Base at mobile size and scale with sm: prefix (e.g., text-2xl sm:text-3xl).
Stack on mobile, row on desktop: Use flex flex-col sm:flex-row for groups of buttons or inline elements.
Full-width buttons on mobile: Use w-full sm:w-auto for action buttons.
Test at all breakpoints: Verify layout at 375px (mobile), 768px (tablet), and 1280px (desktop).

Appendix B - Changelog (v2.0 → v3.0)

B.1 Summary

Version 3.0 documents the responsive design overhaul implemented during Sprint 5 via the Sprint-5-ResponsiveUI branch (PRs #193, #195, #199, #202).

B.2 Codebase Changes Made

The following responsive changes were applied across the application:

File	Changes Made
`app/sites/page.tsx`	Responsive stats grid (`grid-cols-2 md:grid-cols-5`), site card grid (`grid-cols-1 sm:grid-cols-2 lg:grid-cols-3`), responsive header padding/text, new hamburger-based `UserNavBar` integration
`app/gallery/page.tsx`	Four-breakpoint image grid (`grid-cols-1 sm:grid-cols-2 lg:grid-cols-3 xl:grid-cols-4`), responsive gap spacing, responsive modal with viewport-relative image heights
`app/login/page.tsx`	Split-screen layout (`grid lg:grid-cols-2`), left branding panel hidden on mobile (`hidden lg:flex`), mobile-only compact logo (`lg:hidden`), responsive form padding
`app/signup/page.tsx`	Same split-screen responsive pattern as login page
`app/detail/[namesite]/page.tsx`	Responsive header with `flex-col sm:flex-row`, responsive text sizes, responsive card grid, expandable sections with responsive padding
`app/detail/[namesite]/new-report/page.tsx`	Responsive form layout, responsive section padding
`app/detail/[namesite]/new-report/Footer.tsx`	Sticky footer with `flex-col lg:flex-row` layout, full-width buttons on mobile (`w-full sm:w-auto`), responsive progress bar
`app/detail/[namesite]/edit-report/[responseId]/page.tsx`	Responsive form editing layout matching new-report patterns
`app/admin/dashboard/page.tsx`	Responsive stat cards (`grid-cols-1 md:grid-cols-3`), responsive chart containers, responsive header text
`app/admin/sites/page.tsx`	Responsive site management grid, responsive card padding (`p-4 sm:p-6`)
`app/admin/sites/[id]/page.tsx`	Responsive site detail layout, responsive image gallery grid
`app/admin/gallery/page.tsx`	Responsive gallery grid matching public gallery pattern
`app/admin/form-editor/page.tsx`	Preview panel hidden on mobile (`hidden lg:block`), three-column layout collapses to single column
`app/admin/account-management/page.tsx`	Responsive account cards, responsive header with action button
`components/HeaderDropdown.tsx`	New animated hamburger menu (`w-11 h-11`), three-line-to-X animation, dropdown with backdrop overlay, active page bolding
`app/admin/AdminNavBar.tsx`	Admin hamburger menu matching user nav pattern
`components/UploadImages.tsx`	Responsive upload modal with `flex-col lg:flex-row` layout
`app/terms/TermsContent.tsx`	Responsive text padding and sizing

B.3 Key Patterns Introduced

Mobile-first responsive classes (sm:, md:, lg:, xl:) added to all page and component files
Animated hamburger menu replaced previous desktop navigation across both user and admin interfaces
Responsive grids replaced fixed-column layouts on all card/gallery pages
Split auth layout with conditional panel visibility (hidden lg:flex / lg:hidden)
Responsive sticky footer for report forms with stacked-to-inline button progression
Responsive modals with viewport-relative image sizing and stacked-to-side-by-side detail panels
Full-width → auto-width button pattern for mobile/desktop adaptation
Responsive typography and spacing scaling at sm: and lg: breakpoints across all pages

B.4 Document Changes

Section 1.1: Updated scope (removed React Native reference, added responsive design)
Section 1.2: Added MUI v7, react-icons, react-joyride to tech stack
Section 1.3: Added /gallery and /terms routes
Section 4.1: Added touch target accessibility, cross-referenced Section 22
Section 7.3: Updated padding to responsive values
Section 8.1: Updated header code with responsive classes
Section 9.3: Added site list grid pattern and responsive card padding
Section 17: New UserNavBar section (hamburger menu, dropdown structure, menu items, active page bolding, icon conventions, props, test elements)
Section 19: New Image Upload section (homepage UploadImages component, SIR image attachments, drop zones, metadata fields, upload flows, comparison table)
Section 22: New comprehensive responsive design section (22.1–22.13)
Appendix A.2: Added 6 responsive checklist items for new pages
All sections renumbered (17→17 UserNavBar, old 17 AdminNavBar→18, new 19 Image Upload, 18→20 Database, 19→21 Testing, new 22 Responsive)

End of Document

Document Version: 3.0
Last Updated: March 2026
Prepared for: Stewards of Alberta's Protected Areas Association
